Magic Chef 288L 12V RV compressor refrigerator
Give your caravan or motorhome generous cold-storage capacity without relying on LPG or a 230V inverter. The Magic Chef MCDCR10DSBMFB runs directly from a properly sized 12V DC circuit and combines a frost-free, forced-air cooling system with separate electronic refrigerator and freezer settings.

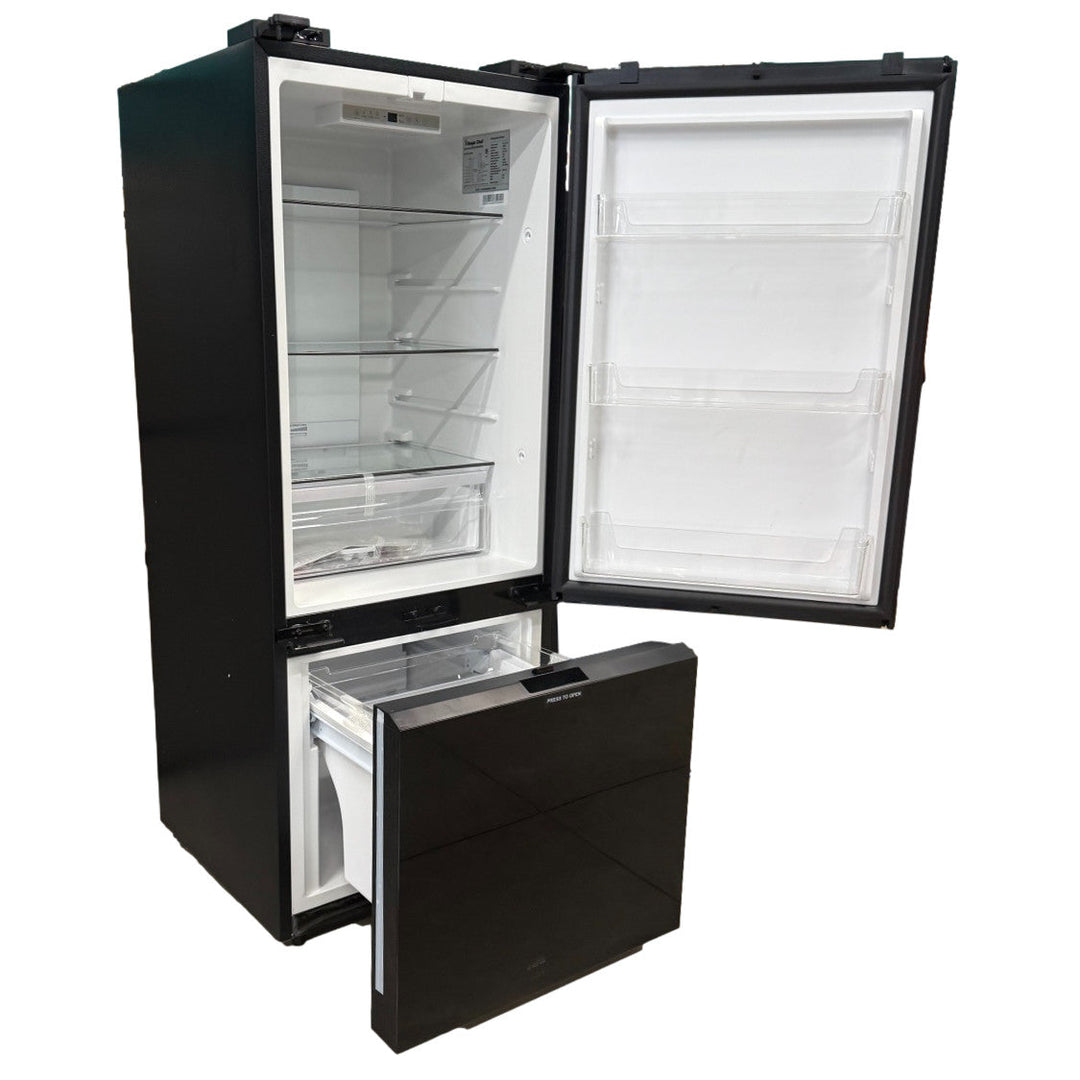

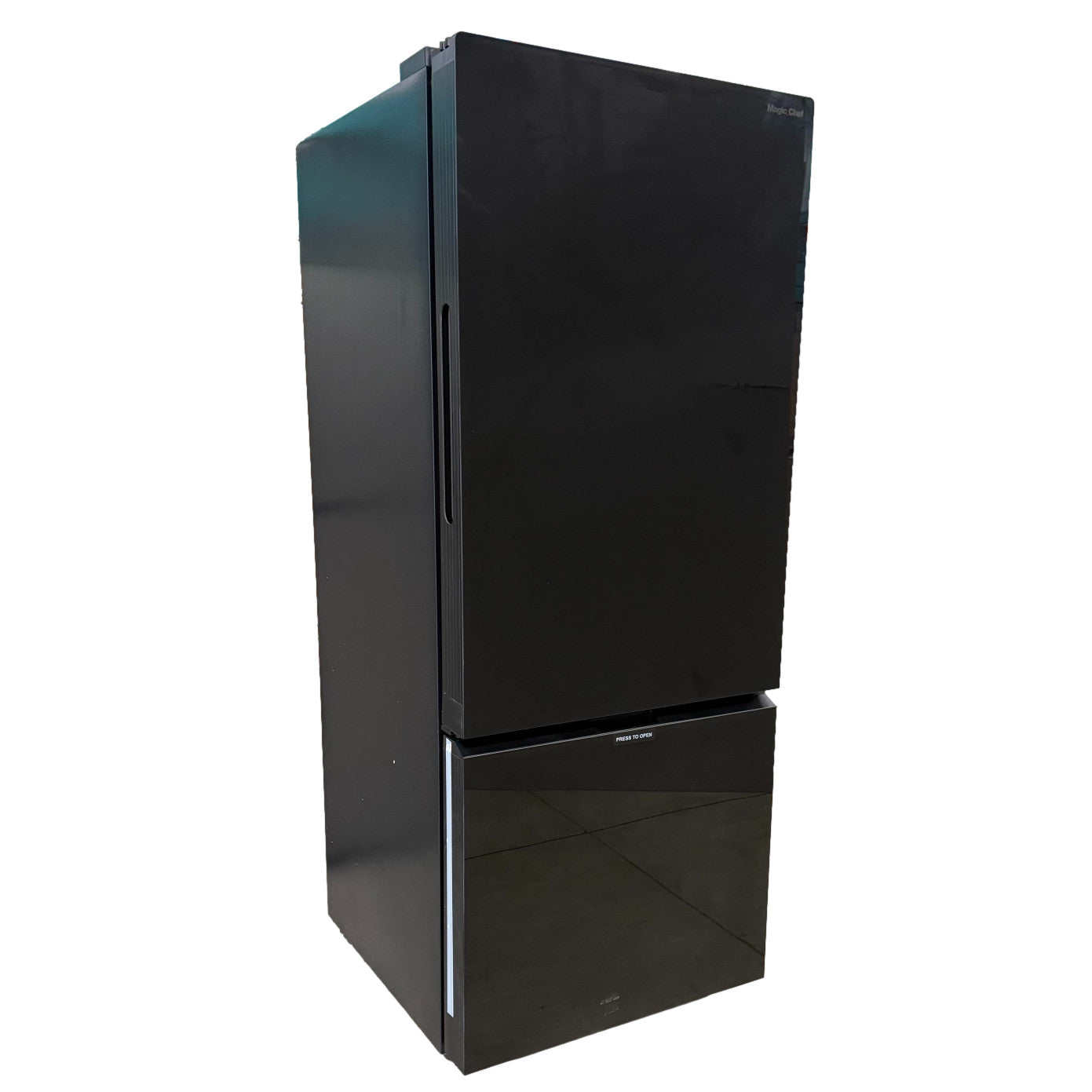

The black-glass refrigerator door opens from either the left or right without rehanging the hinges. Integrated latches hold the door closed while travelling, and an interlock is designed to stop both sides being released at once. Below, the freezer pulls out as a drawer for easy access to frozen food.

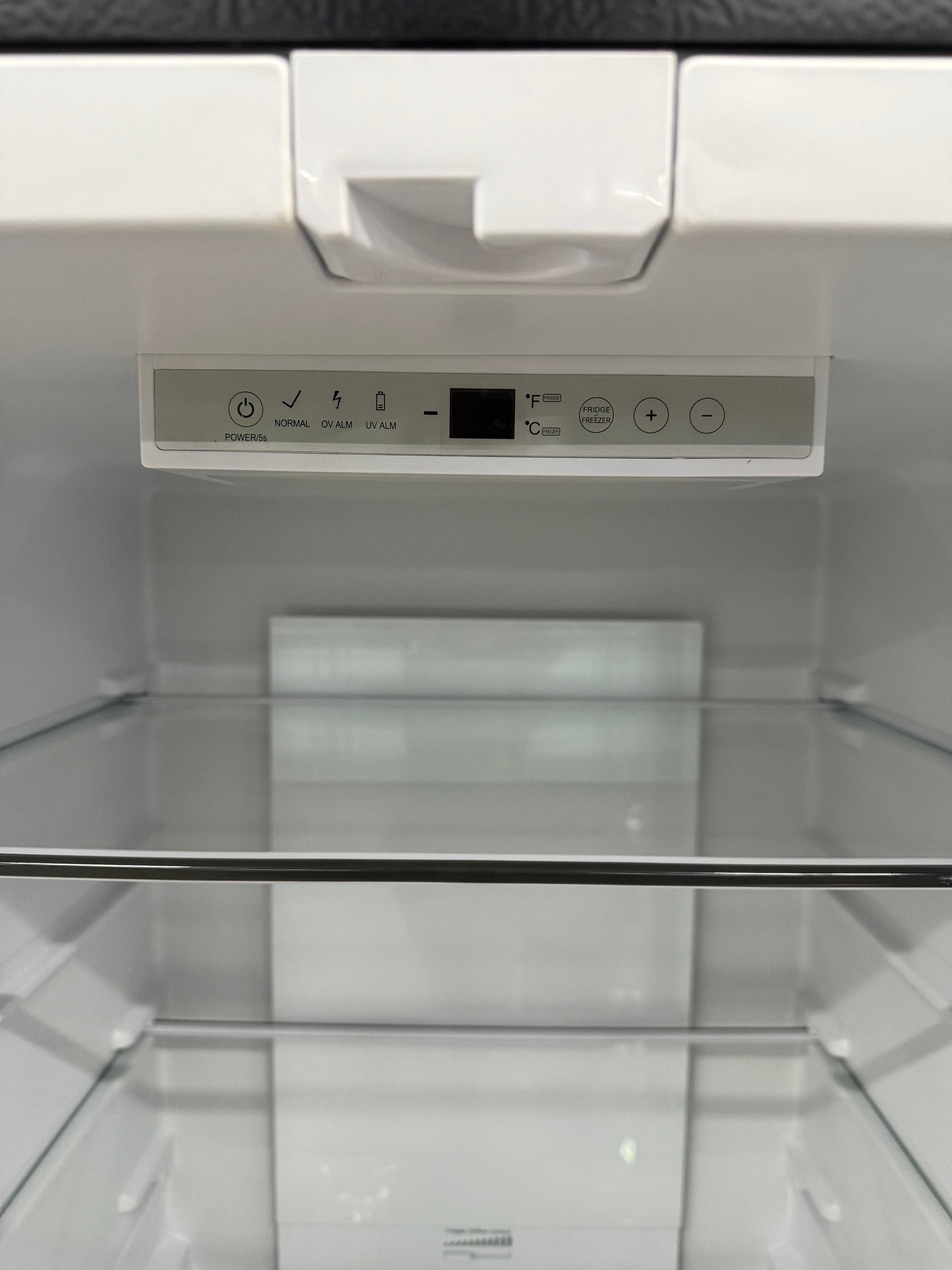

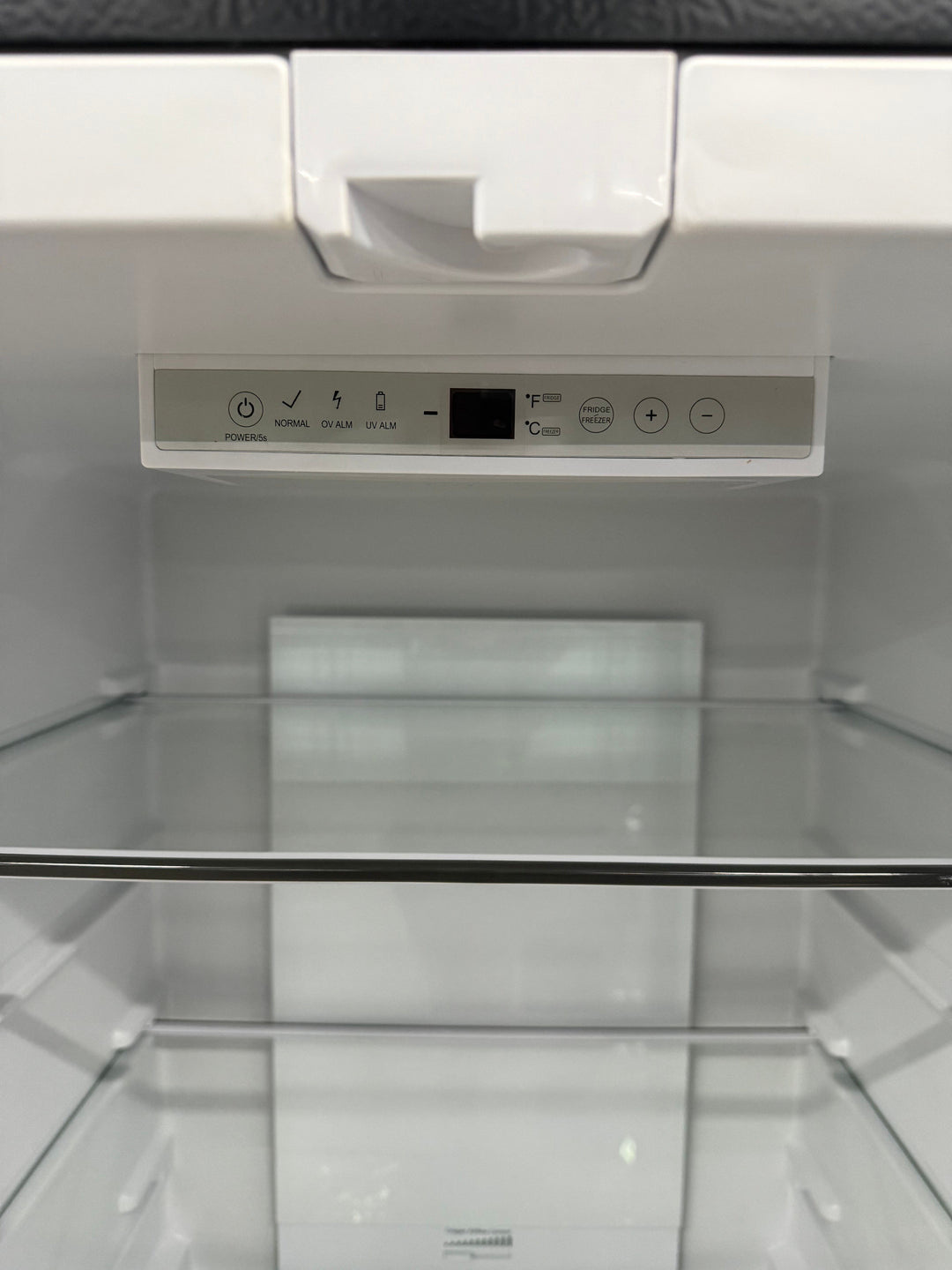

Inside are tempered-glass shelves, door storage, a produce crisper and full-width LED lighting. The control panel displays supply voltage, signals high- or low-voltage conditions and lets you select refrigerator or freezer temperature independently.
This model is a strong dimensional match for the Furrion Arctic FCR10DCGBA-BG-DS / Everchill-style 10.7 cu. ft. bottom-drawer refrigerator and may suit an RV fridge replacement project. It is not represented as a manufacturer-certified universal direct swap. Before ordering, compare your cabinet opening, required ventilation space, mounting points and 12V wiring with the measurements below.
Highlights
- 288 L / approximately 10.2 cu. ft. total Magic Chef capacity
- Direct 12V DC compressor operation - no LPG flame and no inverter required
- Dual-swing refrigerator door opens from either side
- Pull-out bottom freezer drawer
- Separate electronic refrigerator and freezer temperature settings
- Automatic defrost and forced-air cooling
- Black-glass front with integrated travel latches
- Battery-voltage display with over-voltage and under-voltage warnings
- Tempered-glass shelving, crisper, door bins and LED interior light
- Possible replacement candidate for matching Furrion/Everchill layouts, subject to measurement and installer approval
