This near-new Group 27 caravan battery box provides protective storage for a compatible battery in a caravan, RV, trailer, vehicle or boat. It was removed from an imported caravan after the original AGM battery was replaced with a LiFePO4 battery. It is supplied as a used box with a ventilated snap-top lid and securing strap. The battery is not included.
Check your battery fit before ordering
Group-size labels are a useful guide, but battery cases, terminals and cable layouts can vary. Measure the battery body and terminal height, then allow enough clearance for cable bends and safe terminal protection.
| Recommended battery group | Group 27 |
|---|---|

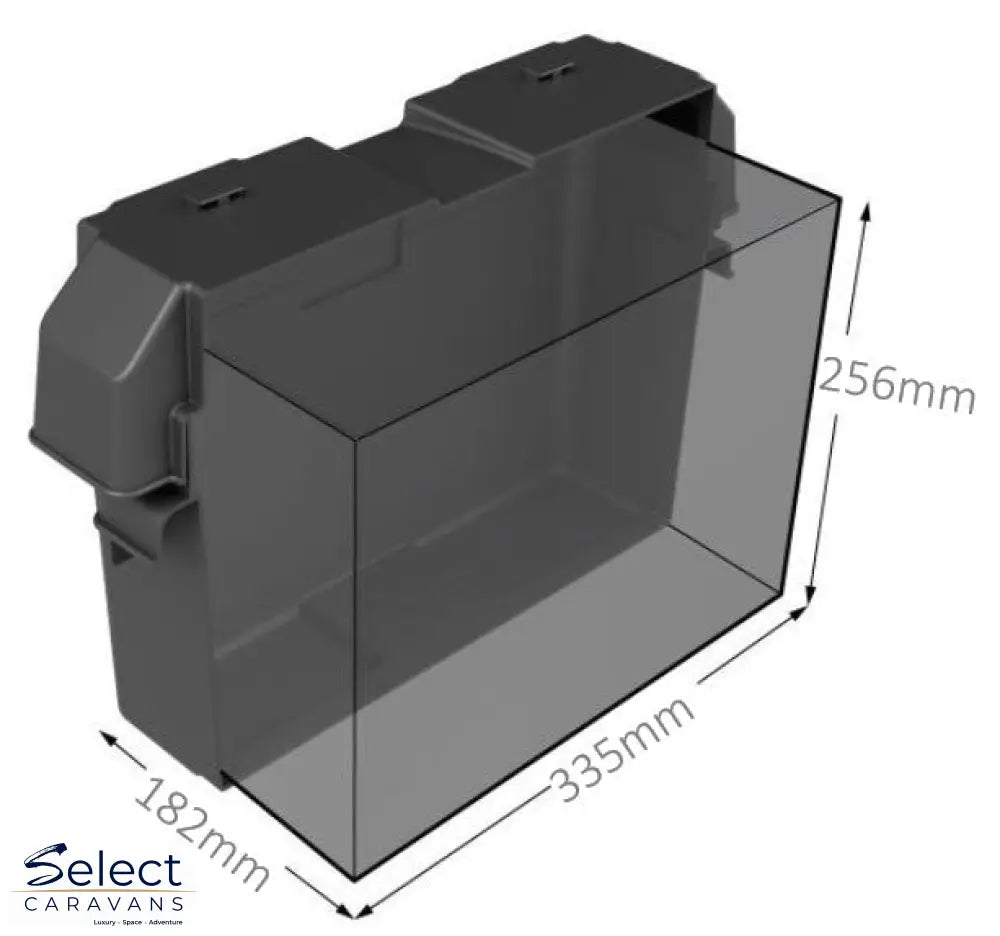

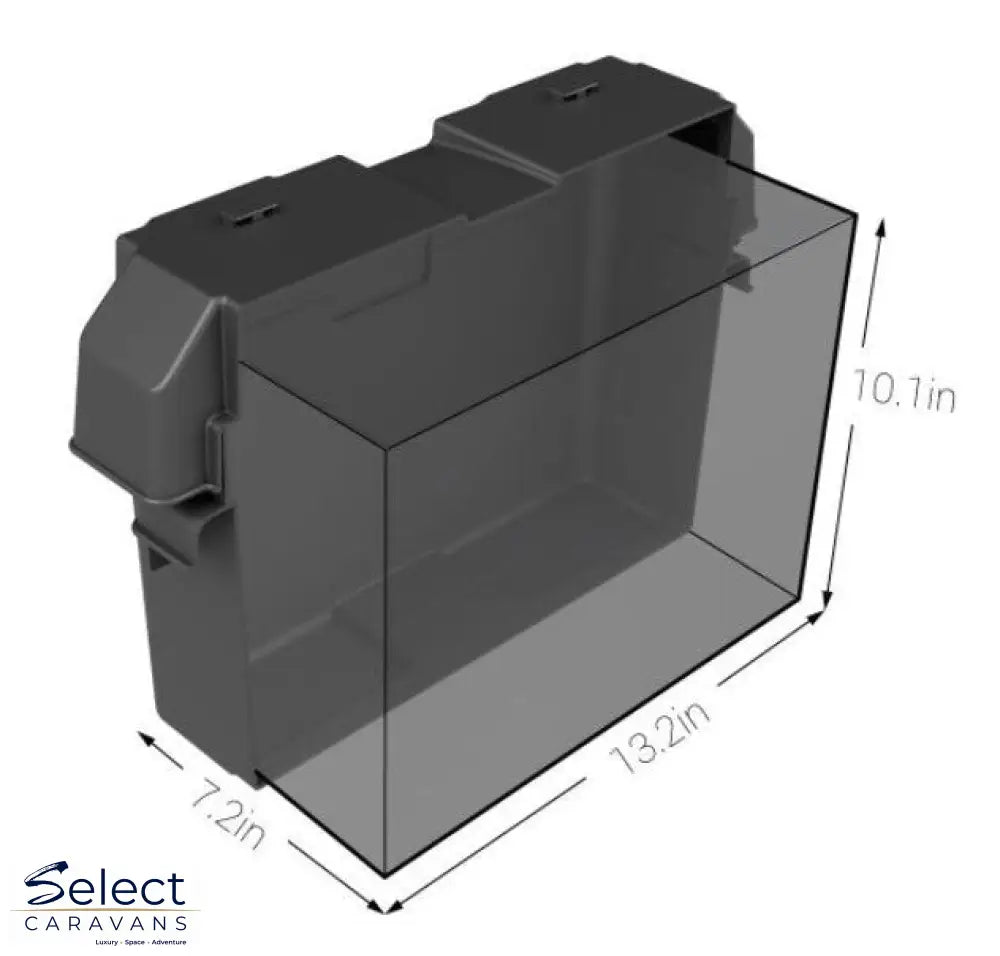

| Maximum internal space | 335mm long x 182mm wide x 256mm high |

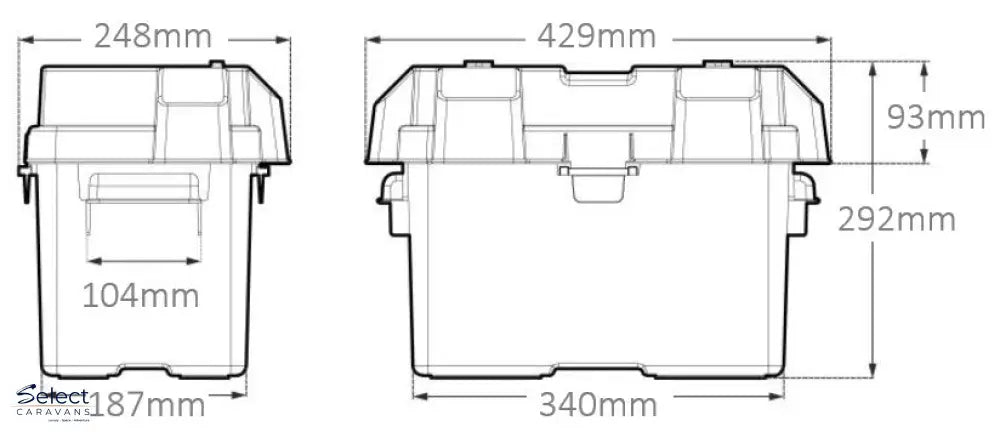

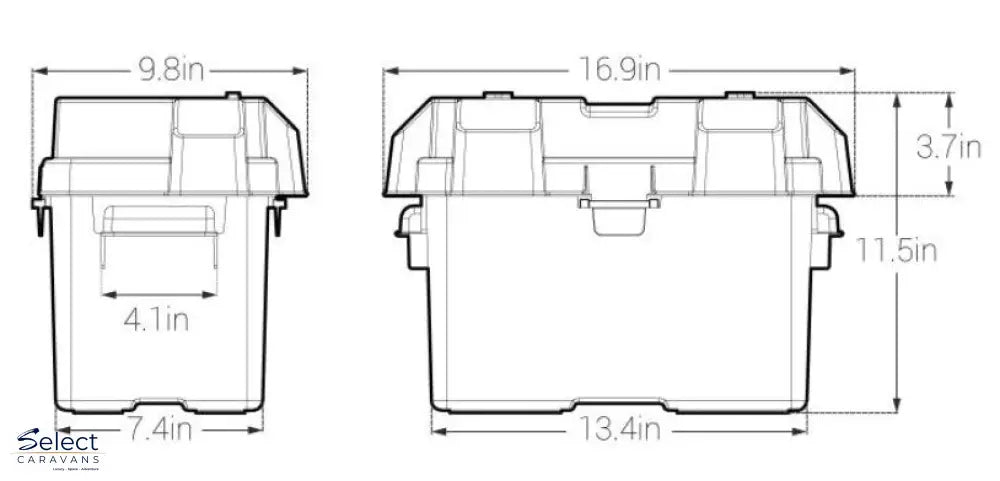

| Maximum external size | 429mm long x 248mm wide x 292mm high |
| Base footprint | 340mm long x 187mm wide |
| Colour | Black |
| Condition | Used, near-new condition |
Measurements follow the product diagrams and are approximate because the lid and case have a moulded, tapered shape.
Features
- Snap-top lid with locking tabs.

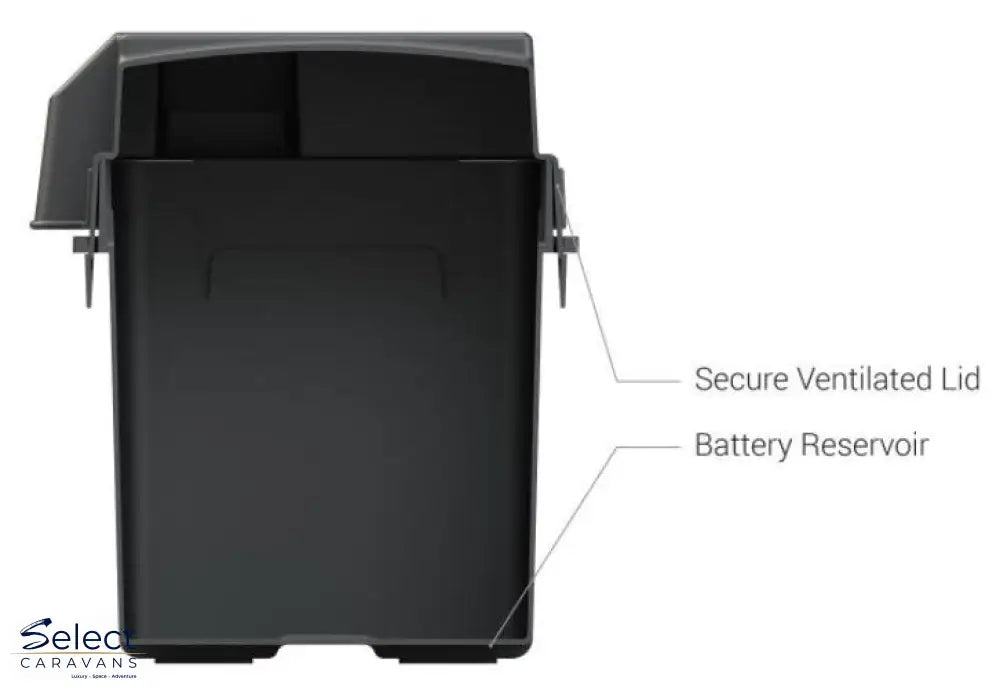

- Ventilated lid to support appropriate battery ventilation.
- Reinforced moulded carry handles.
- Reservoir-style lower case for added containment.

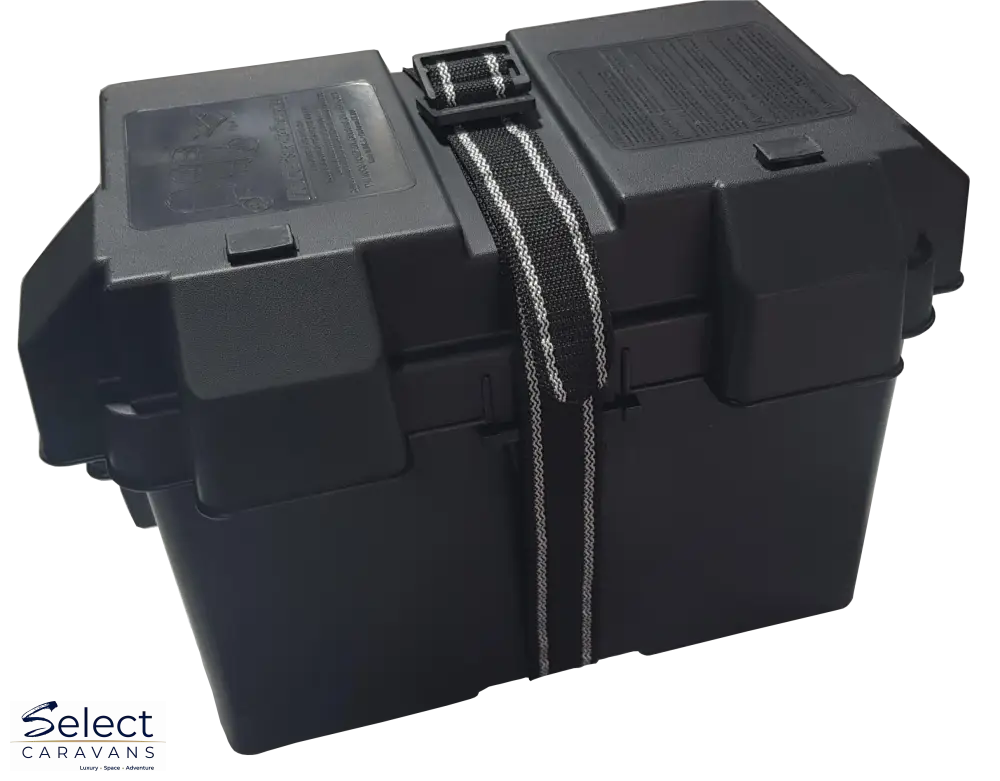

- Securing strap supplied with the box.
- Suitable for caravan, RV, trailer, automotive and marine installations when the battery dimensions and installation requirements match.
What is included?
- 1 used Group 27 battery box.
- 1 ventilated snap-top lid.
- 1 securing strap.
Battery not included. Contact us before ordering if mounting hardware is important to your installation.
Installation and safe use
- Follow the battery and vehicle manufacturer's instructions for enclosure, securing and ventilation.
- Secure both the battery and box so they cannot move during travel.
- Route cables so they cannot chafe, pull on the terminals or become trapped under the lid.
- Protect terminals from accidental contact with tools, fasteners and other conductive objects.
- Inspect the used case, locking tabs and strap before installation. Do not use damaged components.
- Use a suitably qualified installer for permanent caravan or vehicle electrical work.
Frequently asked questions
Is a battery included?
No. This listing is for the used battery box, lid and securing strap only.
Will every Group 27 battery fit?
Not necessarily. Group 27 is the intended size class, but terminal position, case shape and cable clearance can differ. Compare your battery with the 335 x 182 x 256mm internal space before ordering.
Can it be used with an AGM or lithium battery?
The box was previously used with an AGM battery. Suitability for any replacement battery depends on its exact dimensions, terminal layout, chemistry and the battery manufacturer's enclosure and ventilation instructions.
Why is the battery box listed as used?
It was fitted for importing a caravan, then removed when the caravan's AGM battery was upgraded to LiFePO4. It is described as near new, but minor handling marks may be present.
Can I collect it in Auckland?
Contact our Auckland team to confirm current availability and collection arrangements before travelling. Delivery options across New Zealand are shown at checkout when stock is available.
Need help checking the fit? Send us your battery dimensions and terminal layout before ordering.
