Aventa air conditioning systems are optimised to run especially quietly. Cool air flows throughout the entire vehicle via the air distributor. To set the ideal air flow, adjust the four air outlets to the desired level. The air distributor also has an integrated dimmable mood lighting feature.

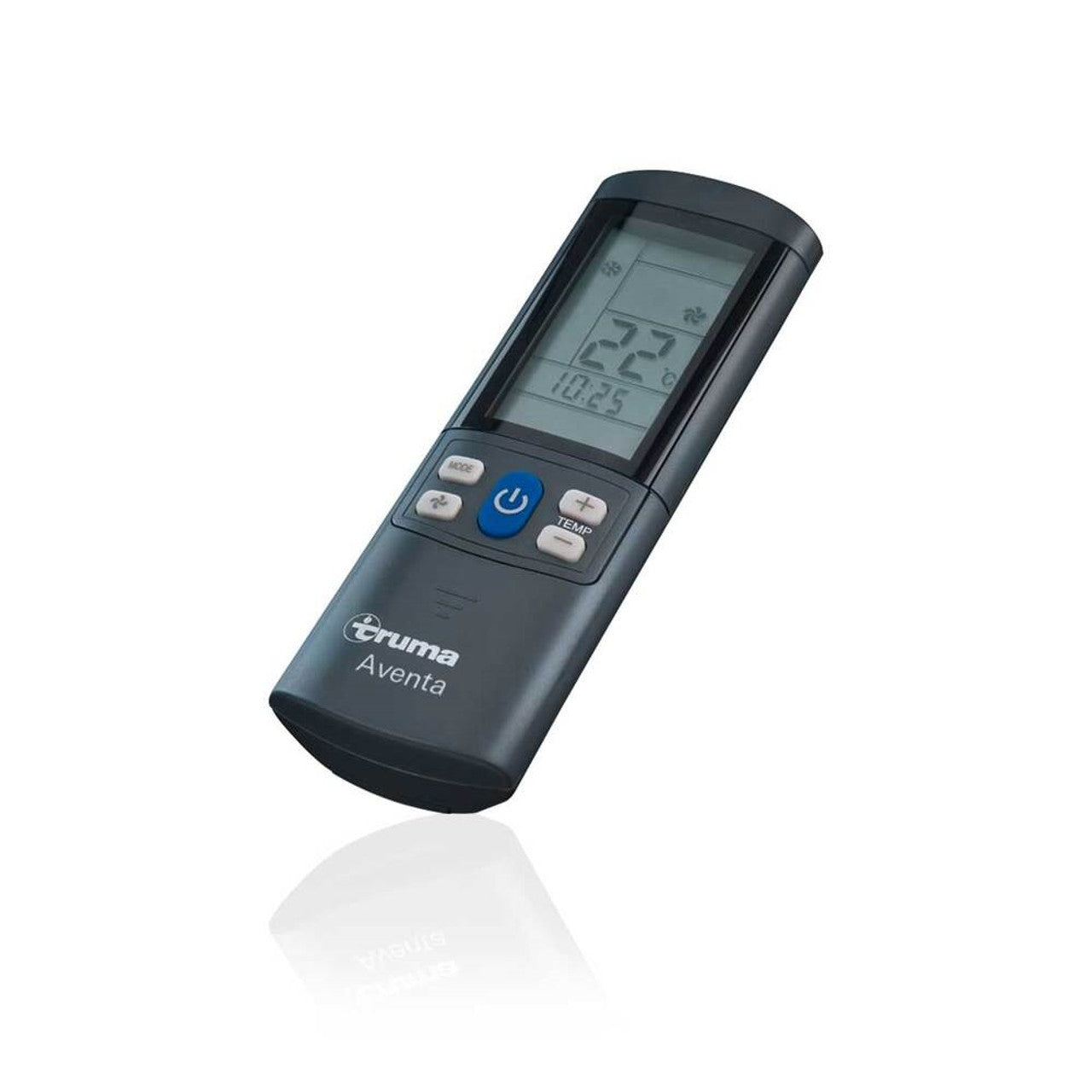

Adjust the room temperature either by remote control (included as standard) or on the digital CP plus control panel (available as an optional extra). In combination with a Combi heater, you can even have automatic climate control. The heater and air conditioner are then controlled automatically until the desired temperature is reached.
Features
- Especially quiet in sleep mode with reduced fan speed
- Use the timer to set the desired running time
- Select the room temperature in one degree increments
- Four operating modes (cooling, heating, automatic, air circulation) and three fan speeds
- Mood lighting works also without air conditioning
- Can be installed inplace of a skylight
- Inside unit flat and compact
- Optional digital CP plus control panel available
Specifications:
Power supply: 230 V – 240 V, 50 Hz
Power consumption Cooling: 4.2 A
Power consumption Heating: 3.7 A
Starting current: 28 A (150 ms)
Cooling power 2.4 kW
Heating power: 1.7 kW (heat pump)
Air volume flow max: 400 m³/hr.
Usage limits: +4 ° C to 40 ° C.
Maximum angle during operation: 8 %
Weight: 33 kg plus installation materials
Dimensions External (mm): 660W x 248H x 1008D
Dimensions Internal (mm): 523W x 46H x 670D
Suits thicknesses from 25 to 110 mm
Warranty: 1 year
Please note: This unit installs into a roof cutout hole size 350mm wide x 380mm length. It can be retrofitted into a 400mm x 400mm cutout hole size by using the optional sealing frame, which is purchased separately. Suits roof thicknesses from 25-110 mm. Talk to us if you have a roof thickness bigger than this as it can still be fitted.
