The Victron Orion XS is a smart DC-DC battery charger for charging a caravan, motorhome, campervan, marine or off-grid house battery from an alternator or another DC source. It combines configurable charging, built-in Bluetooth and high efficiency in a compact unit, helping protect both the alternator and service battery in a correctly designed dual-battery system.
Which Victron Orion XS model do I need?
| Model | Input and output | Rated output | Protection | Typical application |
|---|---|---|---|---|
| Orion XS 12/12-50A SKU ORI121217050 |
9-17V input 10-17V adjustable output |
1-50A Up to 700W at 40°C |
IP65 | Compact 12V dual-battery systems where up to 50A charging is suitable |
| Orion XS 1400 SKU ORI242417040 |
9-35V input 10-35V adjustable output |
1-50A Up to 1400W at 40°C |
IP65 | 12V, 24V or mixed-voltage systems, including 12V-to-24V and 24V-to-12V conversion |

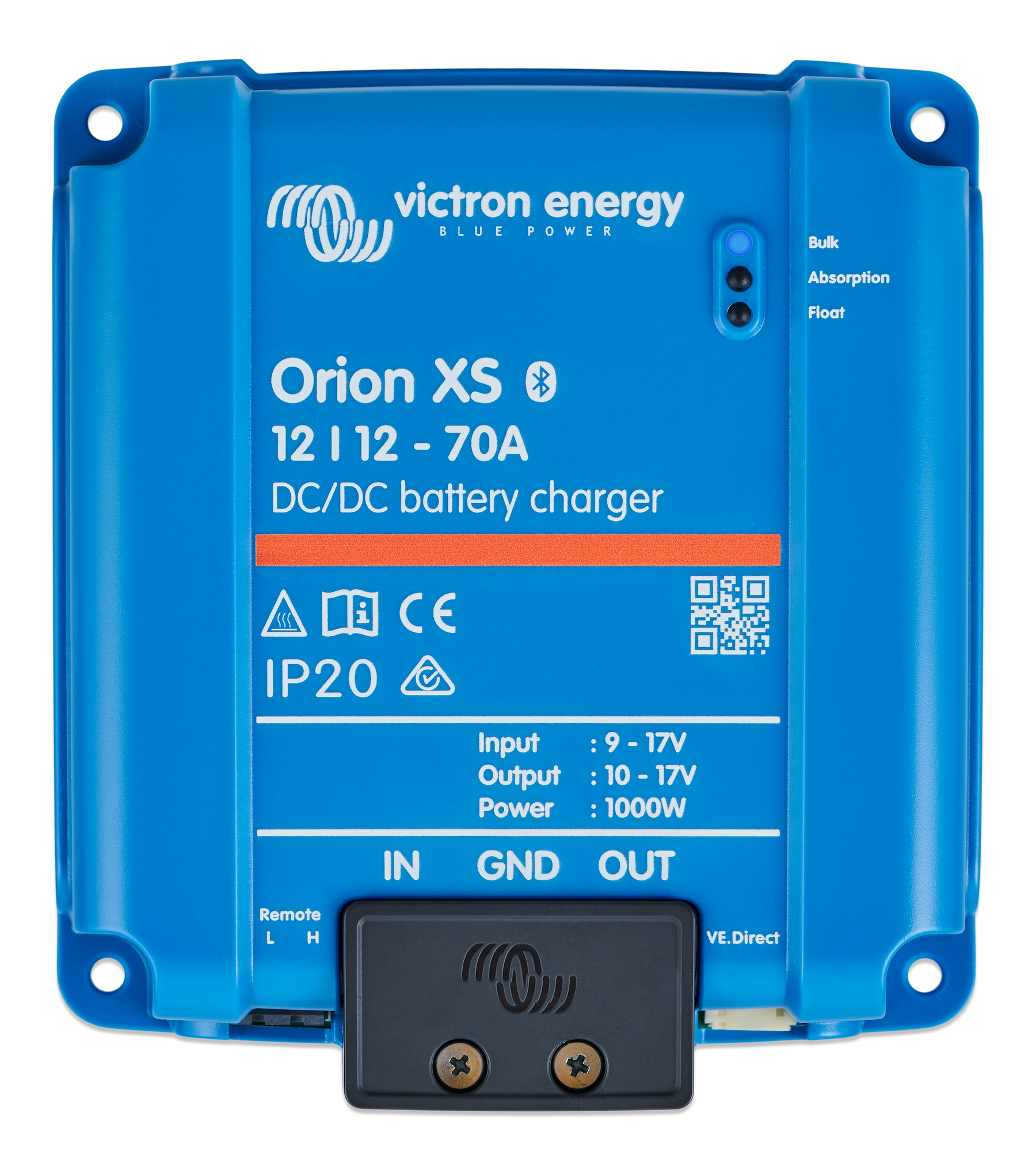

| Orion XS 12/12-70A SKU ORI121221040 |
9-17V input 10-17V adjustable output |
1-70A Up to 1000W at 40°C |
IP20 | Higher-current 12V charging in a dry, protected indoor installation |
Important: The 70A model is IP20 and must be installed in a dry, protected location. The 50A and 1400 models are IP65 rated. An IP rating does not replace the mounting, ventilation, wiring and safety requirements in the applicable Victron manual.
Key features
- Up to 98.5% efficiency, reducing wasted energy and heat
- Configurable input current to help avoid alternator overload
- Adjustable charging voltage for lithium, AGM, Gel and other supported battery chemistries
- Adaptive four-stage Bulk, Absorption, Float and Storage charging
- Integrated engine-shutdown detection for smart-alternator systems
- Built-in Bluetooth for setup, monitoring and firmware updates through VictronConnect
- VE.Direct connection for integration with a compatible GX device
- VE.Smart Networking support for compatible voltage, temperature and current sensing
- Remote on/off input and support for BMS control
- Can also operate as a configurable DC power supply
- Electronic protection against overload, short circuit and excessive temperature
Dimensions and weight
- 12/12-50A: 137.3 x 123.1 x 40 mm, 0.33 kg
- 12/12-70A: 137.3 x 123.1 x 40 mm, 0.34 kg
- Orion XS 1400: 138.1 x 124.4 x 53 mm, 0.52 kg
Compatibility and installation checks
Before ordering, confirm the starter-system voltage, house-battery voltage and chemistry, required charge current, alternator capacity, installation environment and available mounting space. Cable size, fuse ratings, connection torque and ventilation must follow the manual for the selected model. Charging current should also stay within the battery manufacturer's limits.
Professional installation is recommended for vehicle, caravan and marine charging systems. Always isolate power before wiring and configure the correct charging profile before connecting the service battery.
Frequently asked questions
Does the Orion XS work with a smart alternator?
Yes. The Orion XS includes configurable engine-shutdown detection and is designed for controlled charging in modern smart-alternator systems.
Can it charge a lithium battery?
Yes, when the charger is configured to suit the battery manufacturer's required charging profile and the complete system is correctly protected.
Which model can convert between 12V and 24V?
Choose the Orion XS 1400 for mixed-voltage systems. The 12/12-50A and 12/12-70A models are intended for 12V systems.
Can I monitor it from my phone?
Yes. Built-in Bluetooth connects to the VictronConnect app for setup and local monitoring. VE.Direct also supports compatible Victron GX integration.
Need help selecting a model?
Contact our Auckland team with your alternator voltage, house-battery voltage and chemistry, battery capacity and preferred charge current. We can help narrow down the right Orion XS model for delivery throughout New Zealand.
