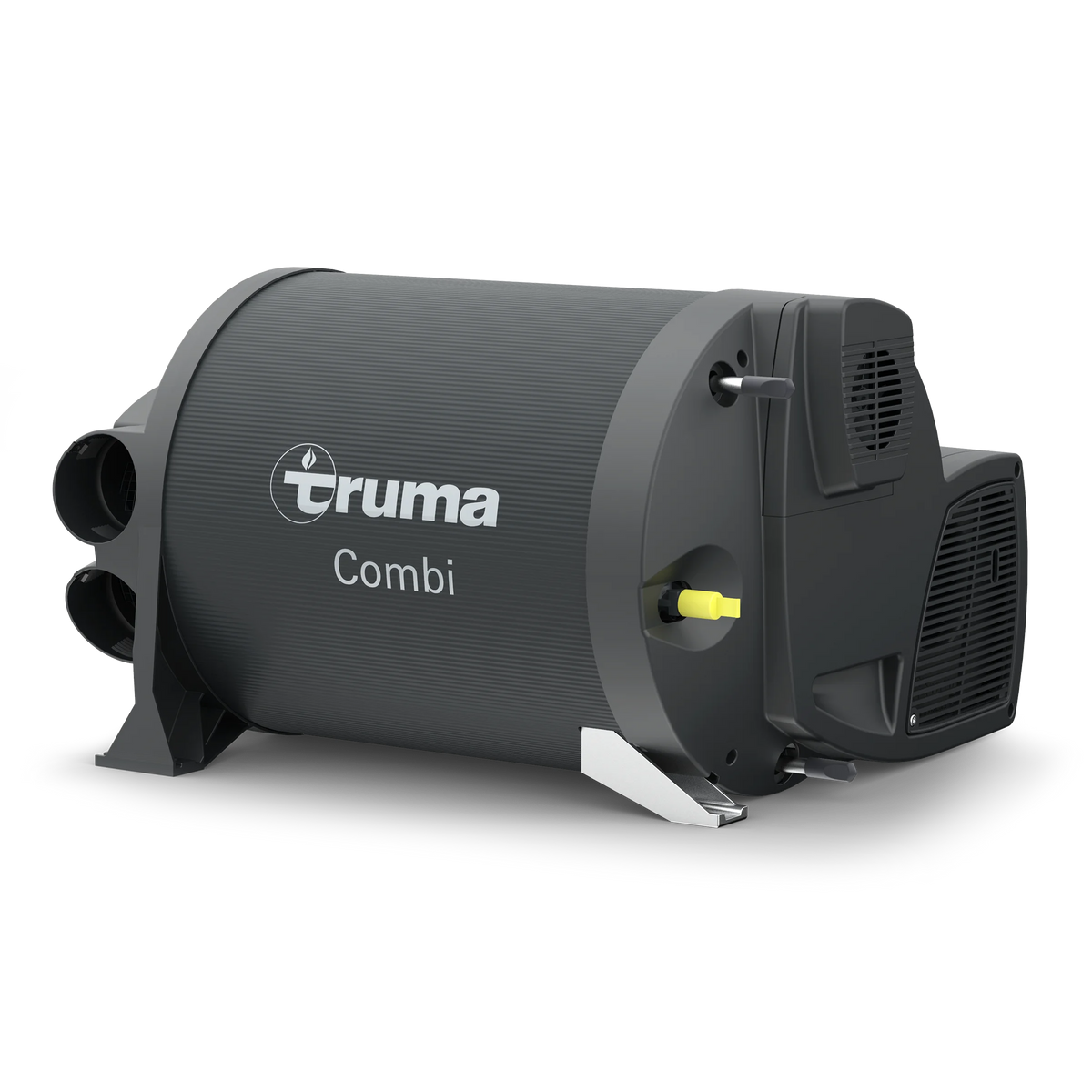

Truma Combi 6E installation kit with iNet X
This Truma Combi 6E package combines powerful 6 kW space heating and a 10 litre hot-water system in one compact appliance for larger caravans and motorhomes. The RVC871 installation kit is centred on Truma part 33814-20 and includes the iNet X control panel plus core flue, water and warm-air outlet components.
Run it on LPG when travelling off-grid, on 230 V electricity at a powered site, or in mixed mode for up to 6.9 kW of heating output. Order online for delivery across New Zealand, or contact the Select Caravans team in Auckland for product and compatibility guidance.
Why choose the Combi 6E?
- Designed for larger caravans and motorhomes with greater heating demand
- One appliance provides both cabin heating and hot water
- Gas, electric and mixed operating modes suit touring and powered campsites

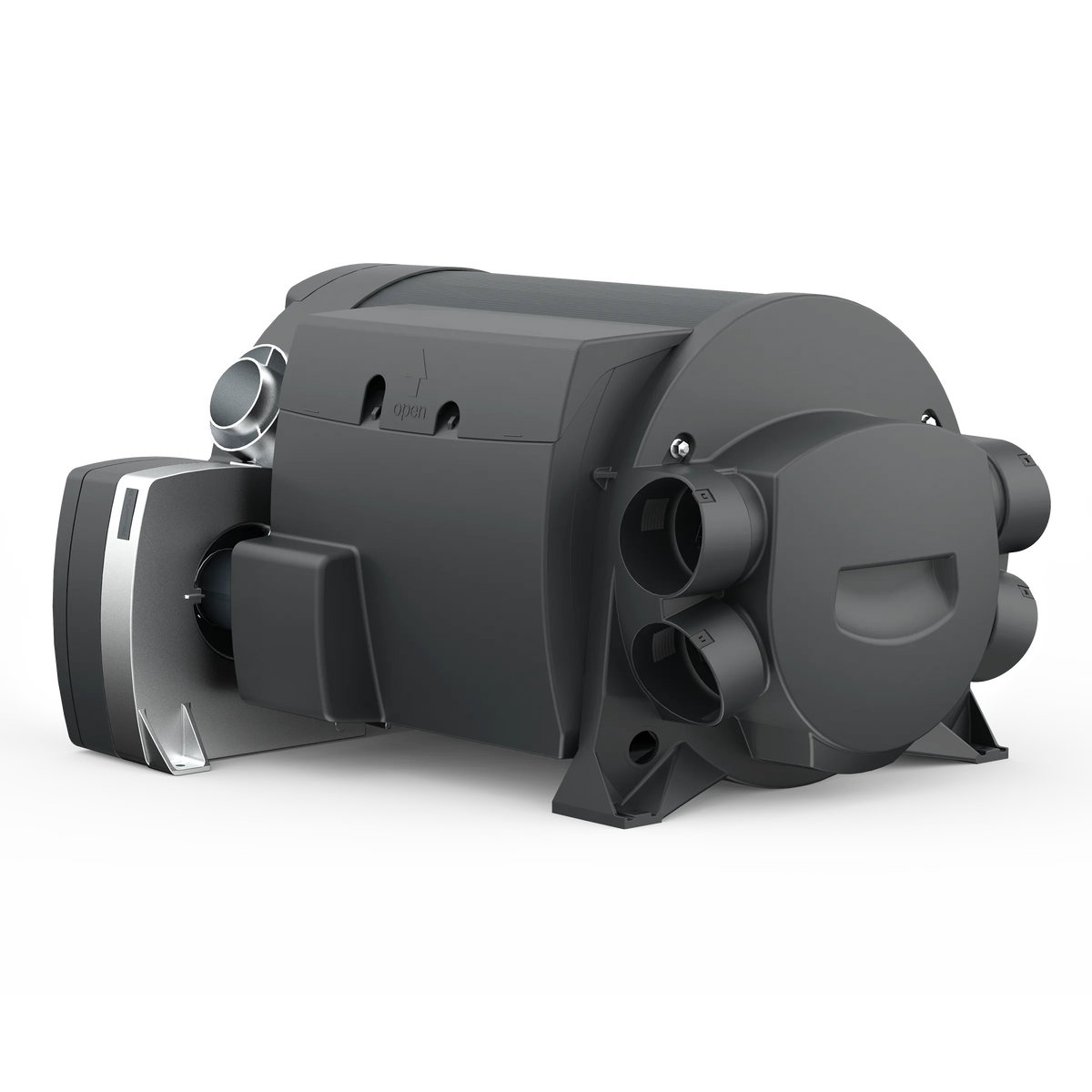

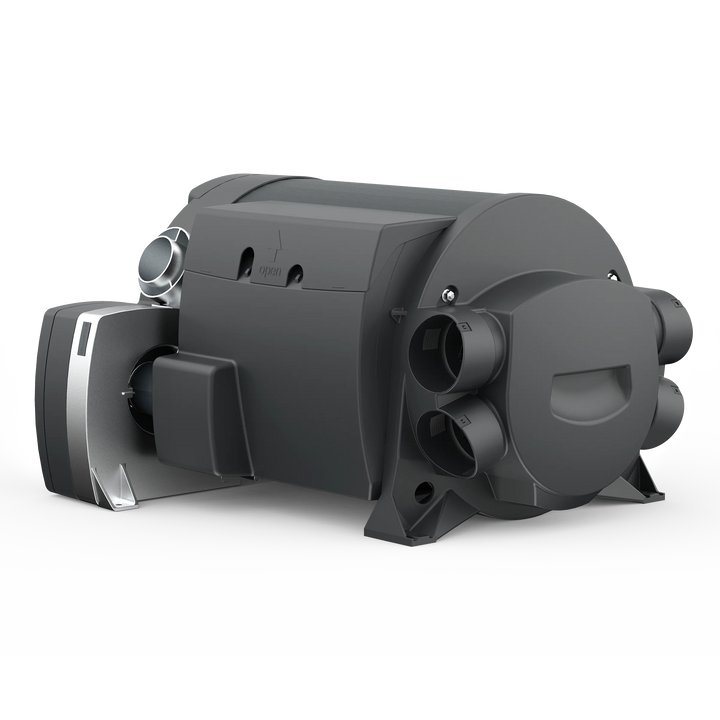

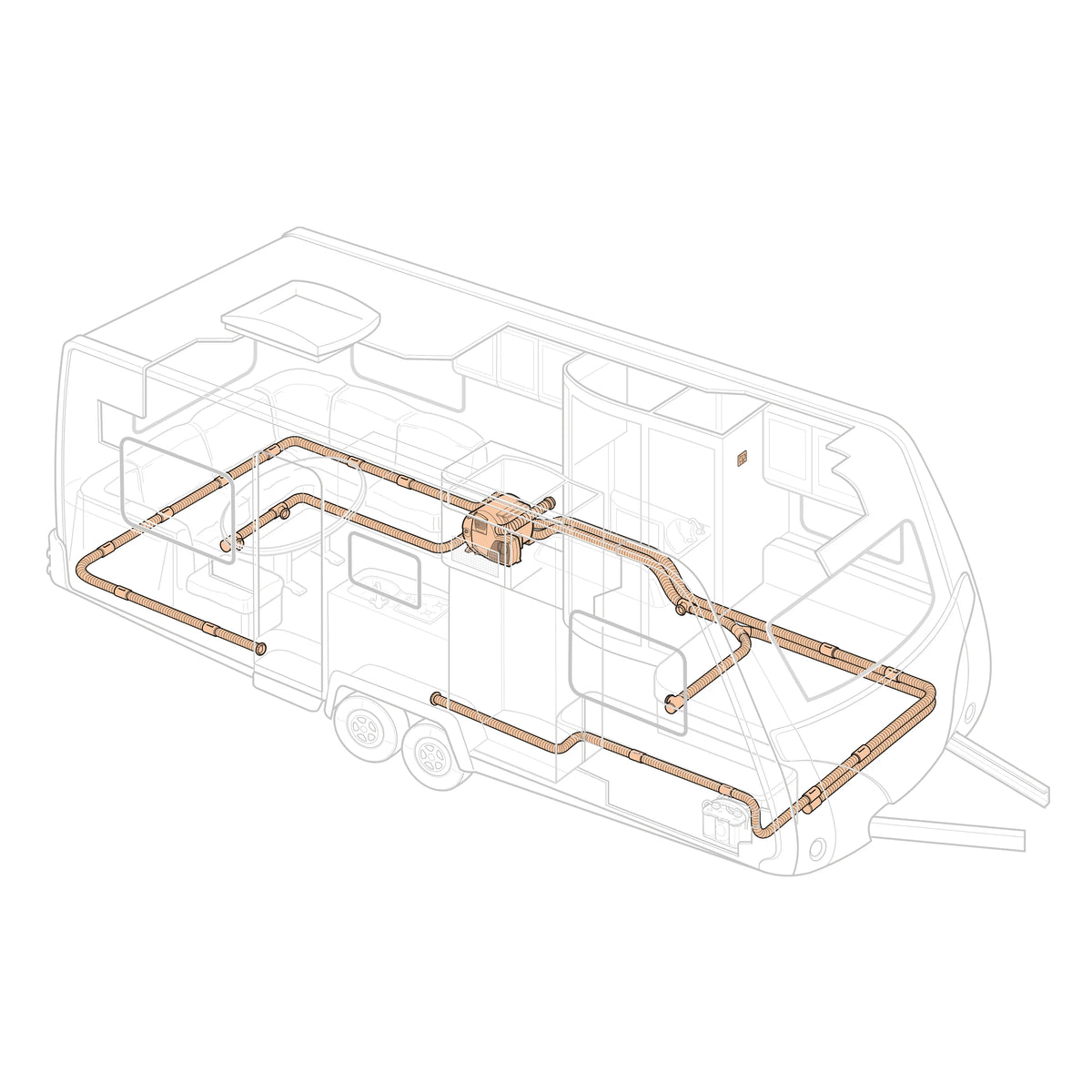

- Four warm-air outlets help distribute heat through the vehicle
- Water-only summer mode provides hot water without space heating
- FrostControl can automatically drain the water tank in cold conditions

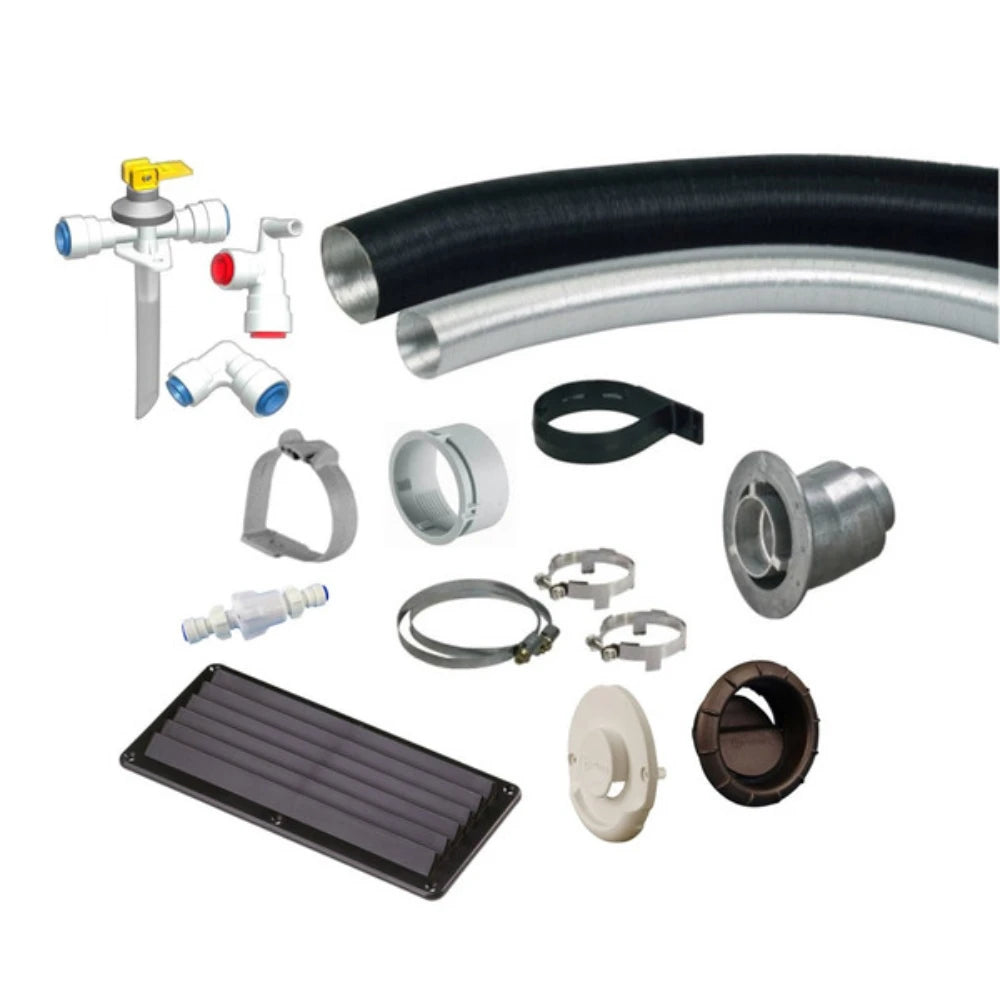

What is included?
- Truma Combi 6E heater, part 33814-20
- Room-temperature sensor

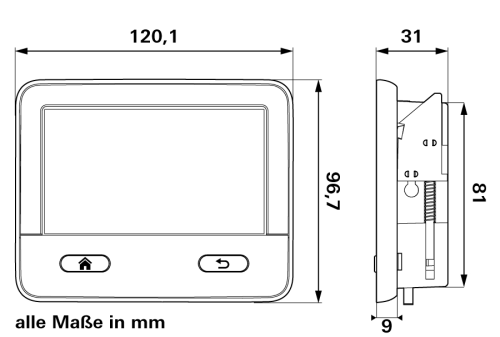

- Truma iNet X Panel
- 6 m control-panel cable and heater fixing parts
- 4 black closable 65 mm warm-air outlets
- 4 ducting clips
- 4 outlet retaining nuts
- Air intake grille
- Flue kit
- Outer cowl
- Water connection kit
- Pressure reducer
Ducting note: The supplier does not list 65 mm warm-air ducting as included. Extra ducting may be required to suit your vehicle layout. Confirm the required length and any installation-specific fittings with your installer before ordering.
Installation labour, gasfitting, electrical work and vehicle-specific extras are not included unless separately agreed.
Technical specifications
| Supplier bundle SKU | RVC871 |
|---|---|
| Included heater part | Truma 33814-20 |
| Energy sources | LPG plus electricity |
| Operating pressure | 30 mbar |
| Gas heat output | 2,000 W, 4,000 W or 6,000 W |
| Electric heat output | 900 W or 1,800 W |
| Mixed-mode output | Up to 6,900 W |
| Gas consumption | 160 to 460 g/h |
| 12 V consumption | Maximum 6.5 A for short periods, approximately 1.4 A average |
| 230 V consumption | 3.9 A or 7.8 A |
| Water capacity | 10 litres |
| Water heating time | Approximately 23 minutes from 15°C to 60°C |
| Combined heating time | Approximately 80 minutes from 15°C to 60°C |
| Airflow | Up to 287 m³/h free blowing |
| Heater dimensions | 510 x 450 x 300 mm (L x W x H) |
| Minimum installation space | 540 x 500 x 350 mm, plus space required for connections and drain valve |
| Heater weight | Approximately 15.5 kg without peripherals. This is not the packed weight of the full kit. |
| Maximum pump pressure | 2.8 bar |
| Maximum system pressure | 4.5 bar |
Choosing between Combi 6E and Combi 4E
The Combi 6E provides up to 6 kW in gas mode and is intended for larger vehicles or higher heating demand. The Combi 4E provides up to 4 kW in gas mode and may suit smaller caravans or motorhomes. Both offer a 10 litre water tank and LPG, electric and mixed operating modes. Compare the Truma Combi 4E installation kit if you need the lower-output option.
Installation and NZ gas safety
This is a fixed LPG appliance. In New Zealand, gasfitting work on caravans and motorhomes must be carried out and certified by an authorised person. Your installer must confirm heater sizing, ventilation, flue position, service access, electrical supply, water-system pressure and compliance for your particular vehicle.
Frequently asked questions
Is this the complete installation kit?
It includes the heater package and the core flue, water and warm-air outlet components listed above. Vehicle layouts vary, so 65 mm warm-air ducting and other installation-specific parts may still be required.
Does it include the iNet X Panel?
Yes. Truma part 33814-20 includes the iNet X Panel, room-temperature sensor, 6 m control cable and fixing parts.
Can it heat water without heating the cabin?
Yes. In summer mode, the Combi 6E can heat water without running the space-heating function.
Can I install it myself?
The fixed LPG installation and certification must be handled by an appropriately authorised New Zealand gasfitter. Electrical and other work should also be completed by suitably qualified people where required.
