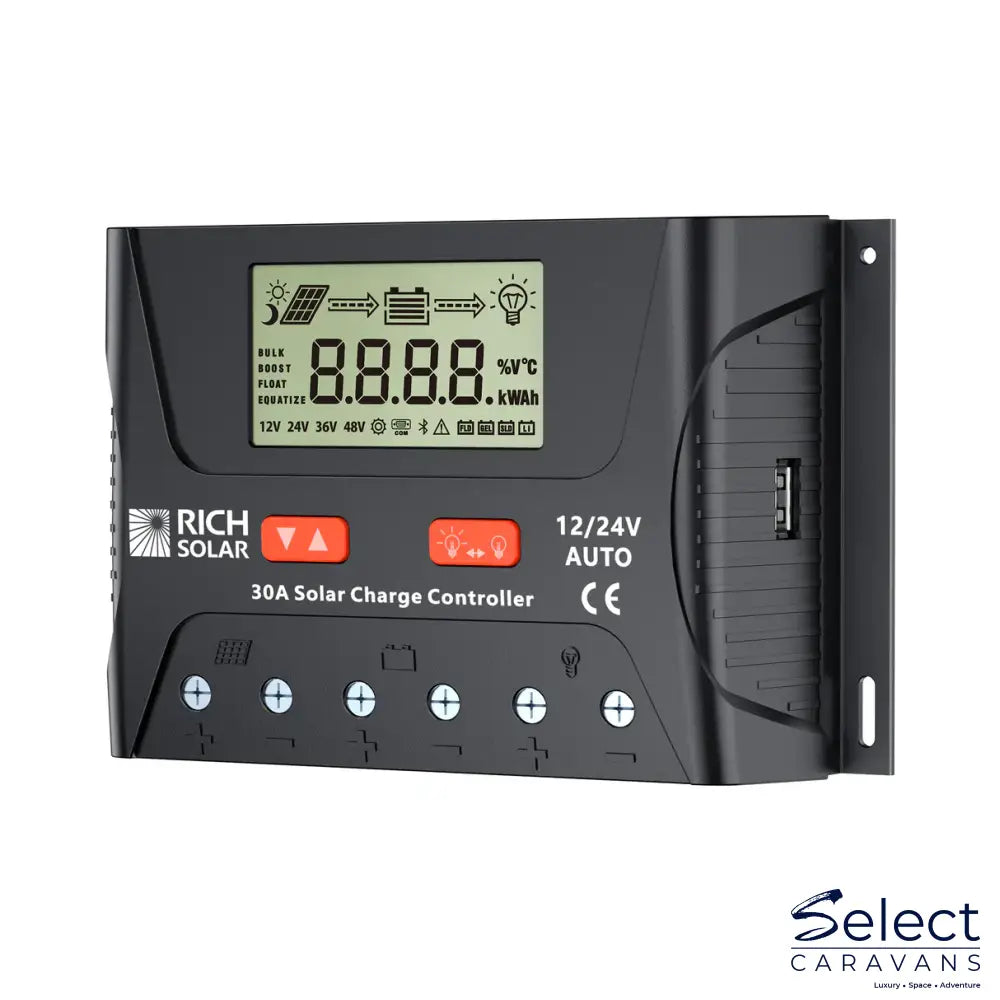

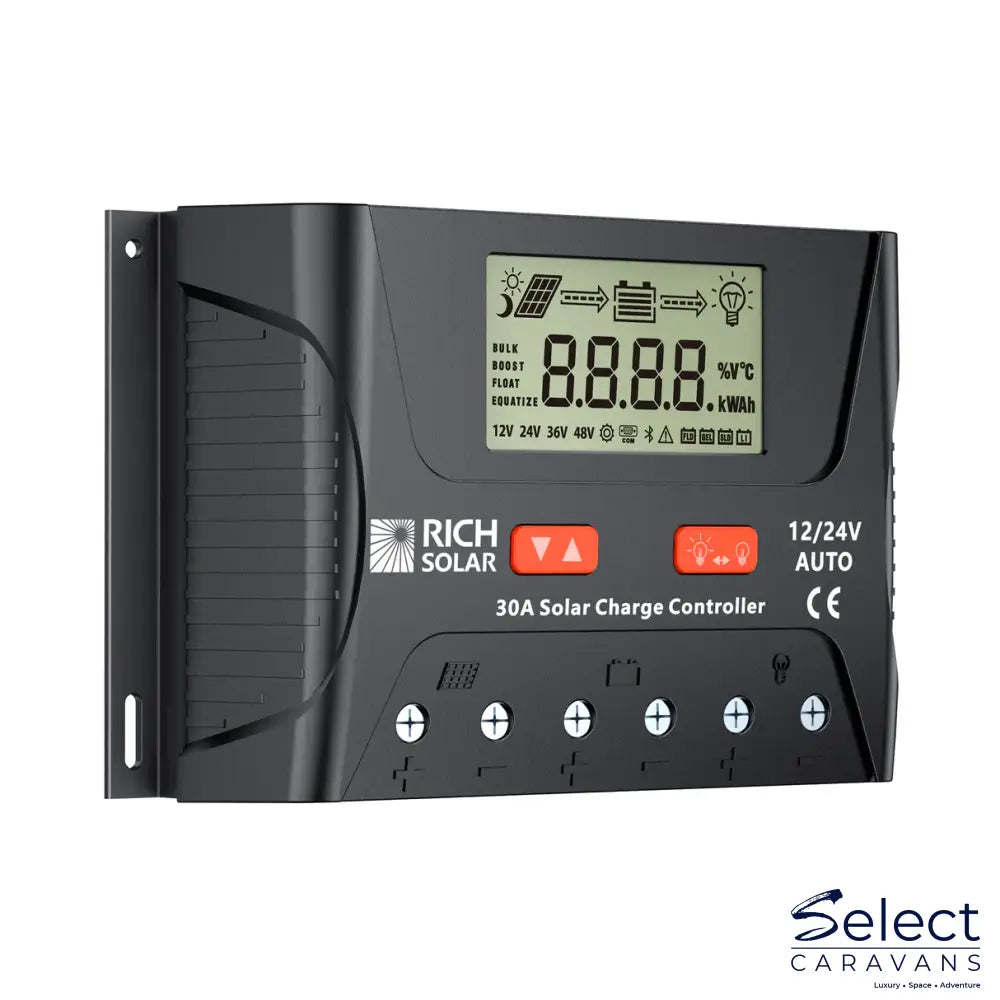

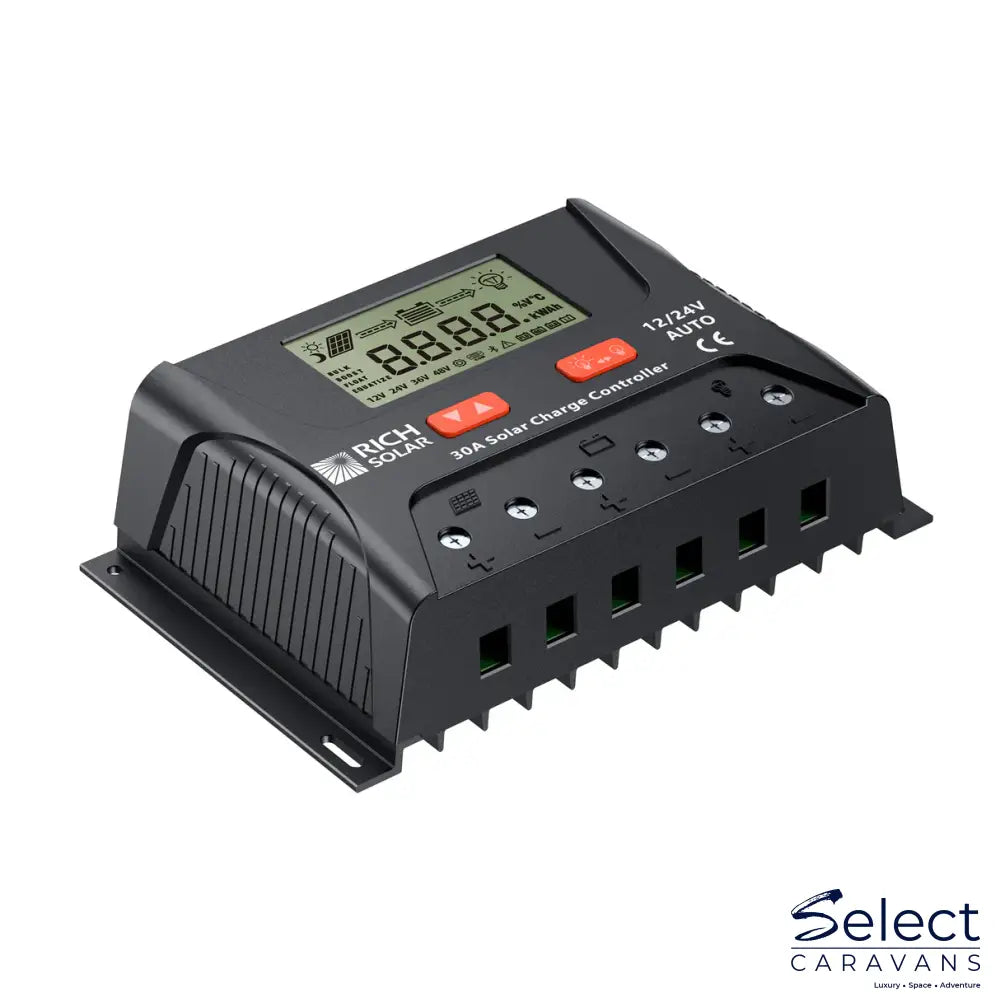

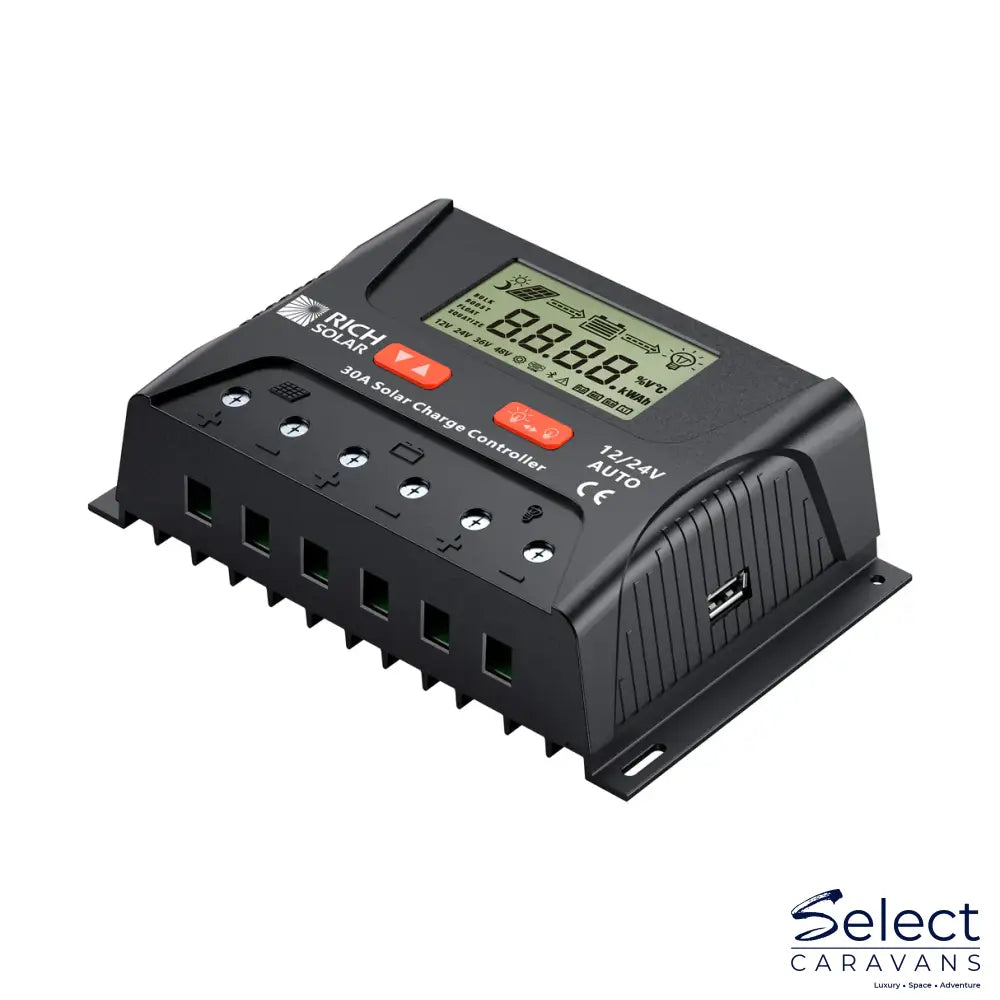

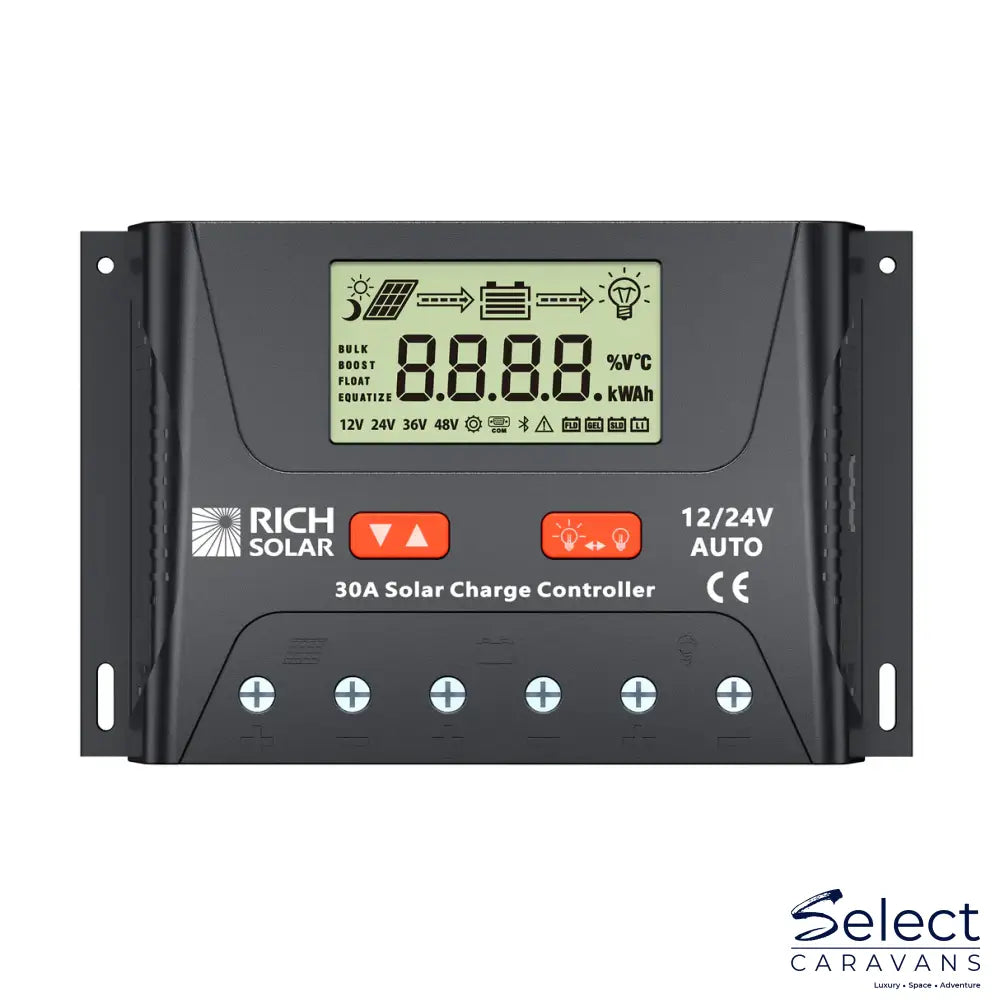

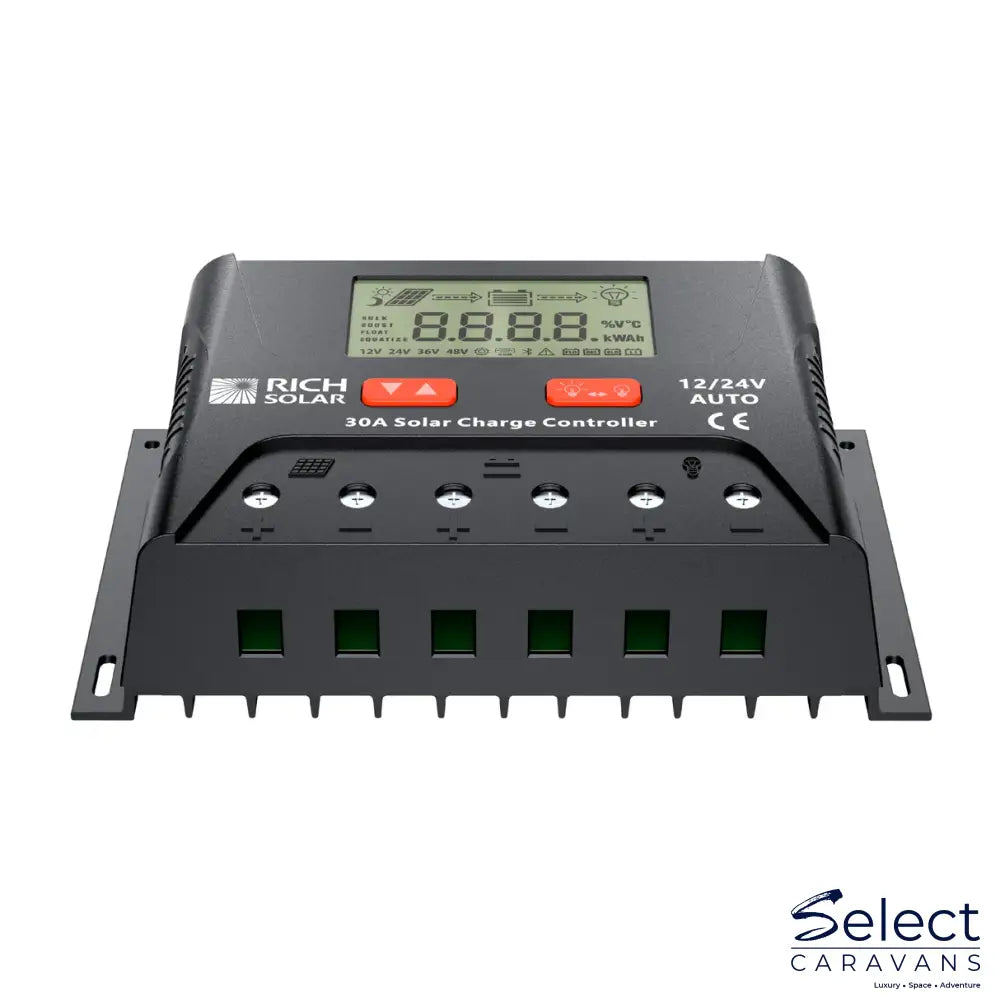

The Rich Solar RS-PWM30P is a 30A PWM solar charge controller for compatible 12V or 24V caravan, RV and off-grid battery systems. This unit is unused and was removed from a new caravan imported from the USA. It is supplied without its original retail box, making it a practical replacement option when the electrical specifications match your system.
Important compatibility checks
- Positive-ground controller: confirm your solar and battery system uses the required grounding arrangement before ordering.
- PWM technology: this is a PWM controller, not an MPPT controller.
- 12V or 24V battery system: system voltage is detected automatically, with manual setup available.
- Maximum solar input voltage: less than 55V.
- Dry installation location: the manufacturer specifies an IP30 enclosure, so the controller is not weatherproof.
If you are replacing an existing controller, compare the model number, system voltage, grounding, current rating, dimensions and terminal arrangement. Do not assume universal compatibility.
Key features
- 30A rated charging current.
- Automatic 12V/24V system recognition.
- Charging profiles for sealed, GEL, flooded and lithium batteries.
- Three-stage PWM charging with boost, float and equalisation. Equalisation does not apply to GEL or lithium batteries.
- Automatic temperature compensation for supported lead-acid battery modes.
- LCD display with two-button control and retained settings.
- Load-control modes for light control, timer control, manual, debug and normal-on operation.
- Protection against overcharge, over-discharge, overload, short circuit and reverse polarity.
Specifications
| Brand | Rich Solar |
|---|---|
| Model / SKU | RS-PWM30P |
| Controller type | PWM solar charge controller |
| Rated current | 30A |
| System voltage | 12V / 24V automatic recognition |
| Rated power | 450W at 12V / 900W at 24V |
| Maximum solar input voltage | Less than 55V |
| Maximum battery voltage | Less than 34V |
| Battery profiles | Lithium, sealed, GEL and flooded |
| Grounding | Positive ground |
| Protection rating | IP30 |
| Operating temperature | -25°C to +55°C |
| Dimensions | 164 × 103 × 47mm |
| Net weight | 0.39kg |
Condition and supply
You receive one unused Rich Solar RS-PWM30P controller as shown. It has been removed from a new USA-imported caravan and does not include the original retail box.
Frequently asked questions
Is this an MPPT solar controller?
No. The RS-PWM30P uses PWM charging. Choose it only when PWM technology and its electrical limits suit your solar array and battery system.
Can it charge a lithium battery?
The manufacturer lists a lithium charging profile. Confirm the selected settings are compatible with your battery manufacturer's requirements and battery management system.
Will it replace my existing caravan solar controller?
It may suit systems that require the same 30A PWM, 12V/24V and positive-ground configuration. Check the existing model, wiring arrangement, solar input voltage and installation space before purchase.
Can it be installed outside?
No. The IP30 enclosure requires a dry, protected installation location.
Need help checking the model or electrical limits? Contact our Auckland team with a photo of your current controller label and your solar-panel and battery details before ordering for delivery across New Zealand.
