Product overview

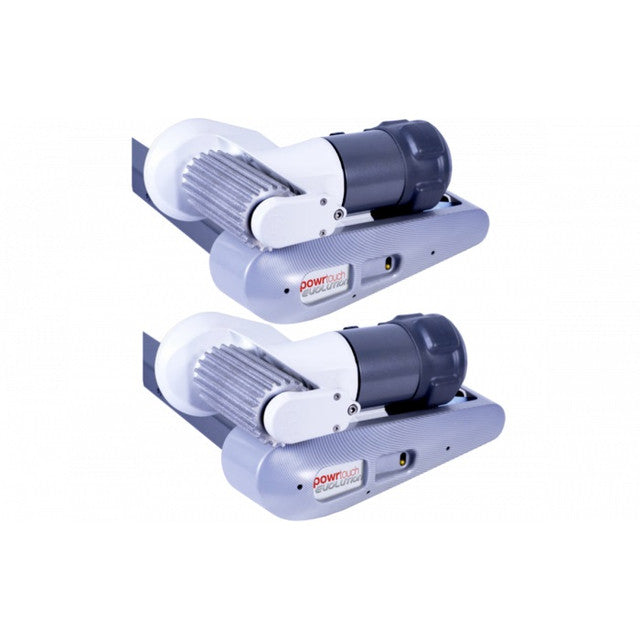

Powrtouch Single Axle Caravan Mover (2 Motor Auto) is designed to help manoeuvre and position compatible caravans or trailers with greater control. Check vehicle weight limits, chassis compatibility and installation requirements before ordering.
Product details
The Powrtouch Evolution is a next generation caravan mover and has been designed and developed in the UK. The all new caravan mover system makes extensive use of lightweight alloy materials and an ultra efficient gearbox, this combined with a new state of the art four-pole' electric drive motor giving it significantly increased power to the drive rollers, making it the lightest and most powerful caravan mover available. The innovative dynamic roller location mechanism moves the rollers smoothly and directly on to the tyres, improving grip and driving power by eliminating roller slippage.
With its exceptional power and improved traction it will drive any single axle caravan (regardless of its weight) up slopes in excess of 1 in 4 (25%).
Features:
- Our Powrtouch Evolution for single axle caravans will fit all standard Alko & BPW chassis with or without shock absorbers, including smaller caravans & trailer tents
- Automatic roller engagement controlled from the handset for a simple & easy life! Eliminating the need to manually engage the rollers
- 5 stage planetary gearbox on roller engagement for maximum power & grip
- Tool supplied to manually retract rollers in case of flat battery
- High strength lightweight and compact construction using aircraft & marine grade aluminium alloy materials
- High power 4 pole double wound motor delivering maximum power to the rollers
- 20 Point lightweight aluminium rollers for optimum grip
- DMC technology allows the ultimate precision manoeuvring in tight spaces
- Precise & accurate soft start Powr drive control giving smooth mm by mm manoeuvring
- Highly efficient gearbox design for efficient operation & battery life
- All metal high strength sealed gearbox Multifunction handset and base unit warning indication system
- 360 degree directional precision control with in motion directional adjustment
- Comprehensive directional performance, all with 4 speed settings
- Designed & Manufactured to the highest standards including ISO 9001:2008 & TUV Standards. NCC Compliant
- This industry leading guarantee is fully supported by our factory trained staff
- Tested for 2000kgs on a 1 in 4 slope (levelling ramps)
- PowrTouch 5 year New Zealand wide warranty
- PLEASE NOTE - this product is NZ compliant - this version of the Powrtouch product is NOT available through parallel importers. If in doubt - please contact us - we are the exclusive importers for New Zealand
Specifications:
- Roller Engagement: Automatic
- Operating Voltage: 12V
- Average Current Consumption: 20A
- Max. Current Consumption: 80A
- Speed: 280mm/second
- Weight: Approx. 35kg
- Permissible Overall Weight on 25% gradient: 2000kg
