The Victron Orion non-isolated DC-DC converter range converts a 12V DC supply to a stable 24V output for compatible caravan, RV, marine and off-grid electrical equipment.
Choose the output specification required for the connected equipment. Adjustable models can be set to the required output voltage and can also support specialised battery-charging applications when the complete system has been correctly designed.
Choose your model
| Output specification | SKU | Input | Output | Best for |
|---|---|---|---|---|

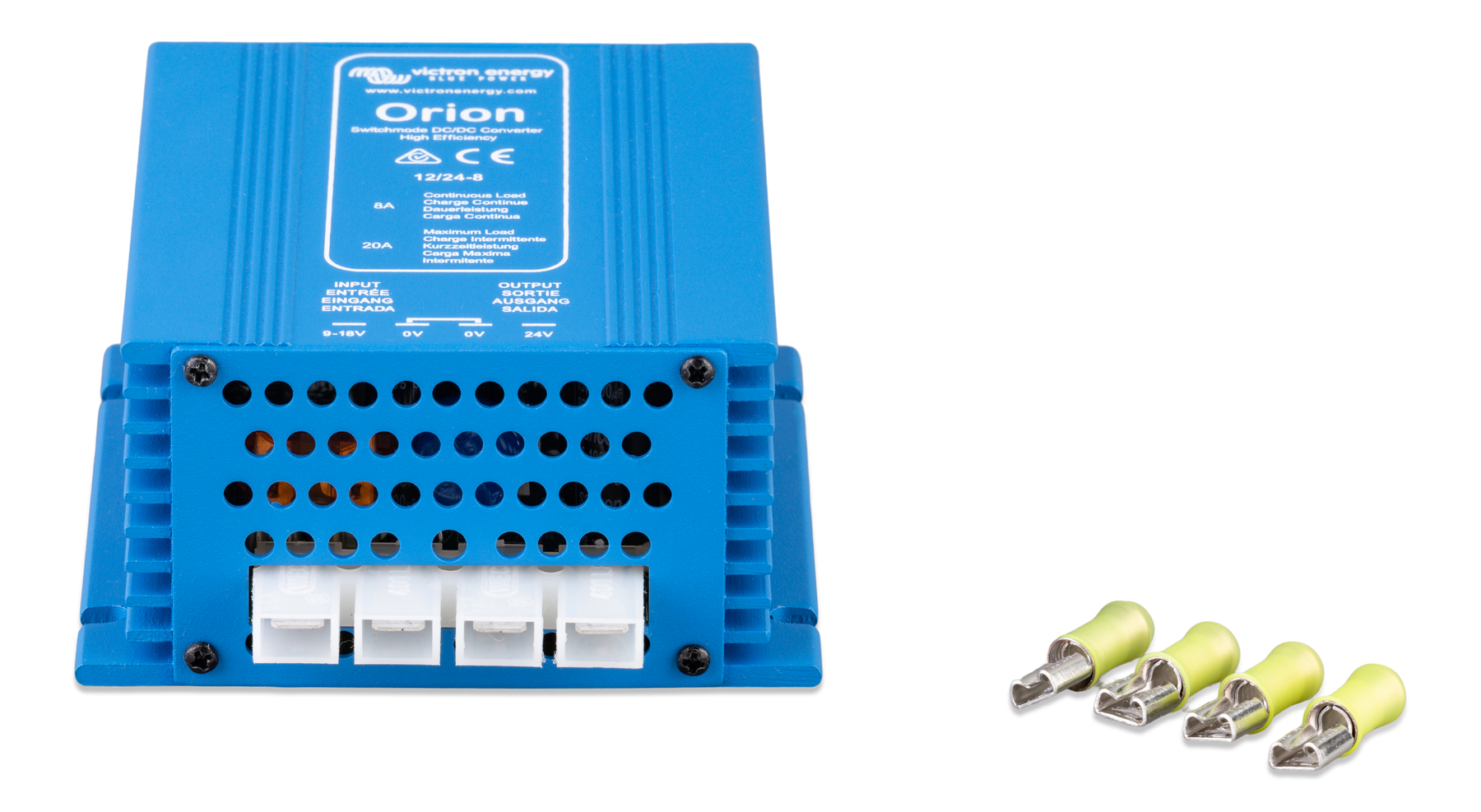

| 8A — Fixed output | ORI122408020 | 12V | 24V, 8A | Equipment requiring a fixed 24V supply |

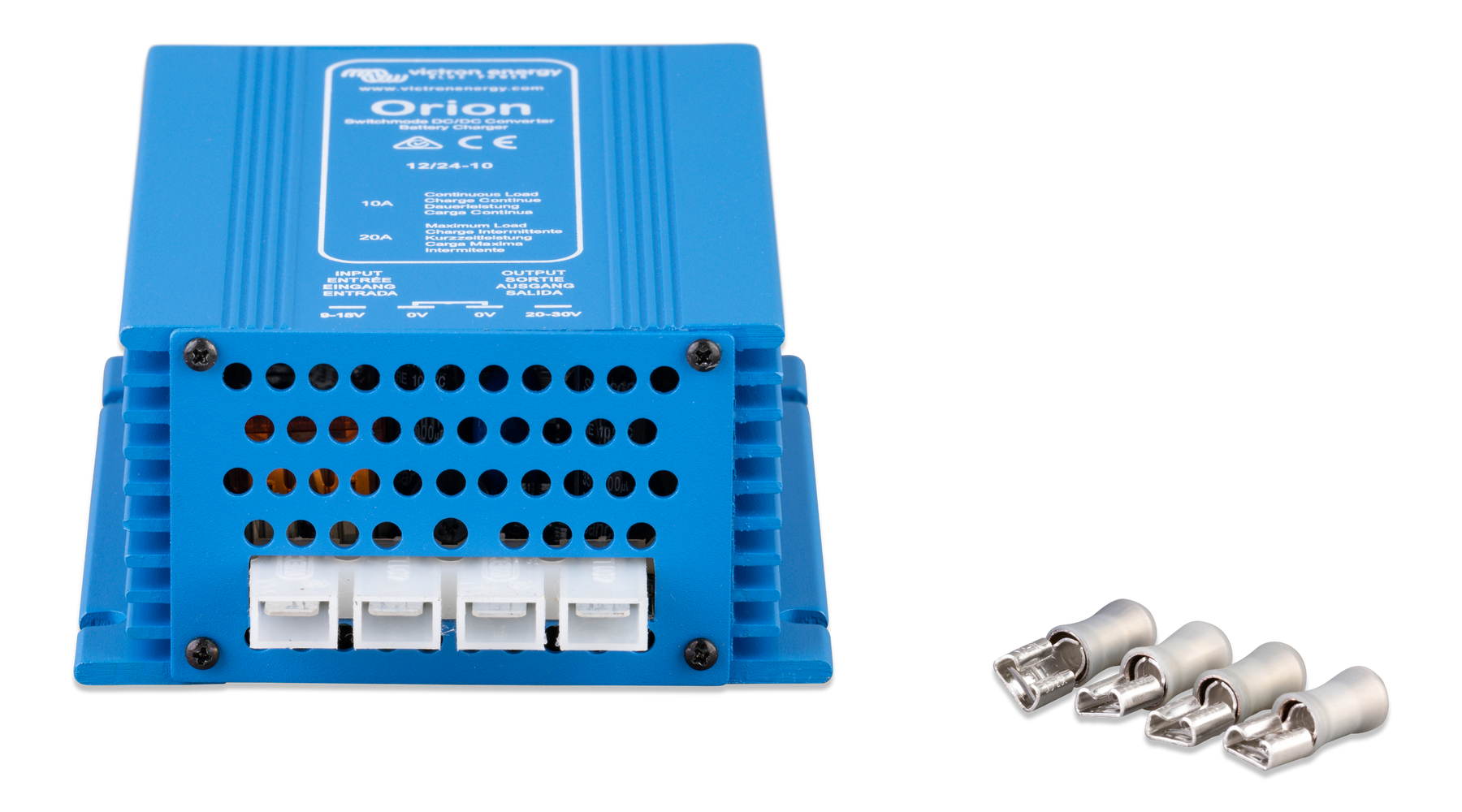

| 10A — Adjustable output | ORI122410020 | 12V | 24V, 10A | Adjustable general-purpose voltage conversion |

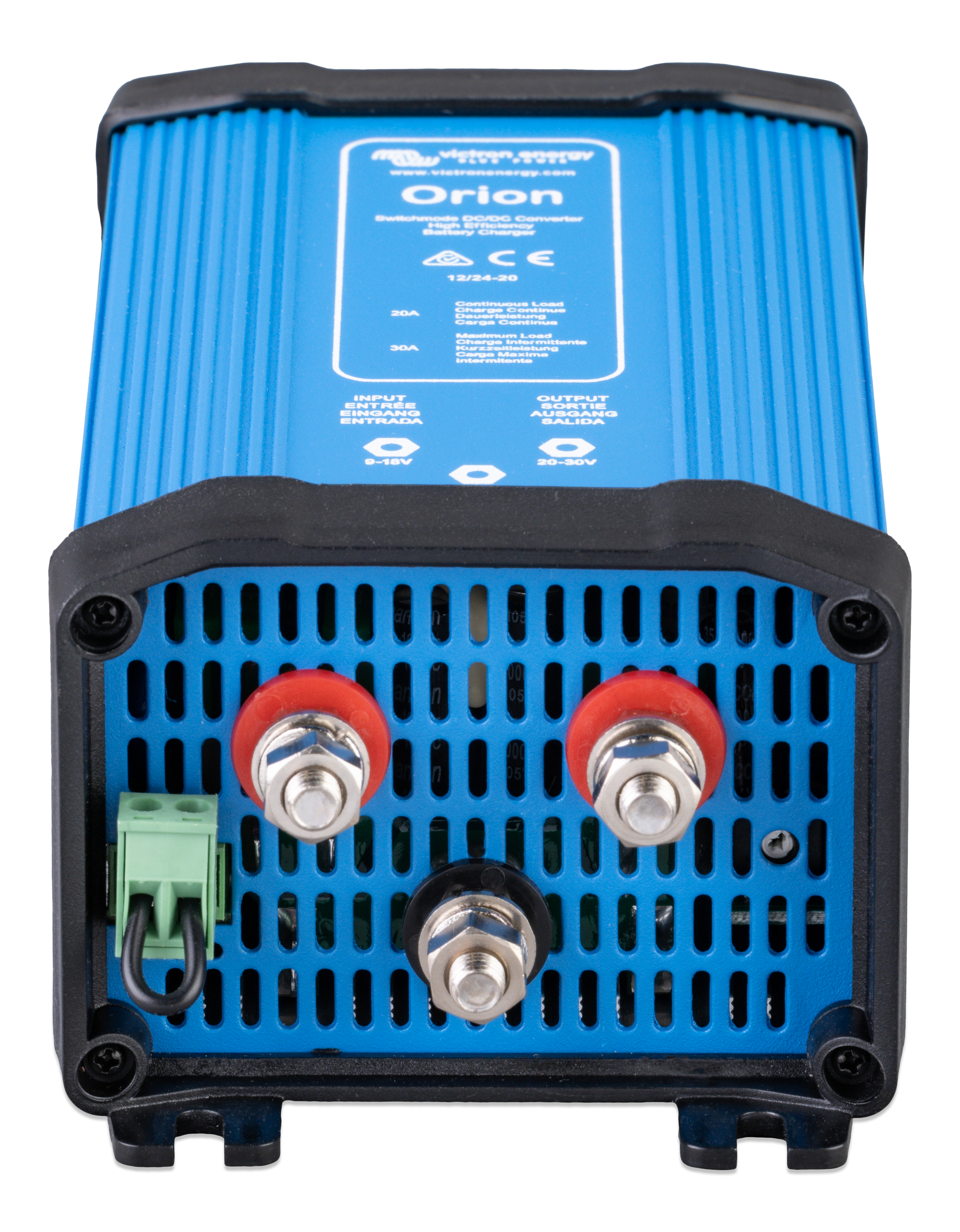

| 20A — Adjustable output | ORI122420020 | 12V | 24V, 20A | Higher-current 24V equipment |
Key features
- Non-isolated design with a common negative
- Remote on/off connection
- Models with adjustable or fixed output
- Adjustable models can be connected in parallel where the installation permits
- Suitable for 12V-to-24V caravan, RV, marine and off-grid systems
Important: Confirm the required input voltage, output voltage, continuous current, cable size, fuse protection and grounding arrangement before installation. Battery-charging use requires correct charge-voltage configuration and system design.
