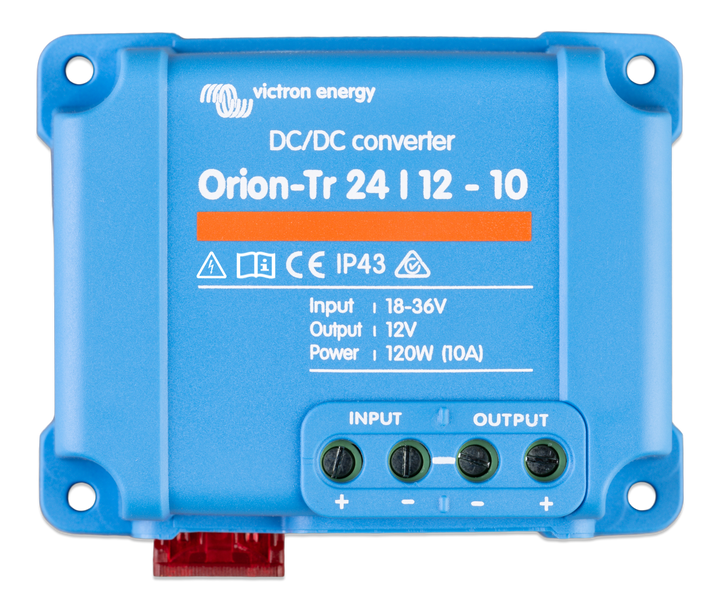

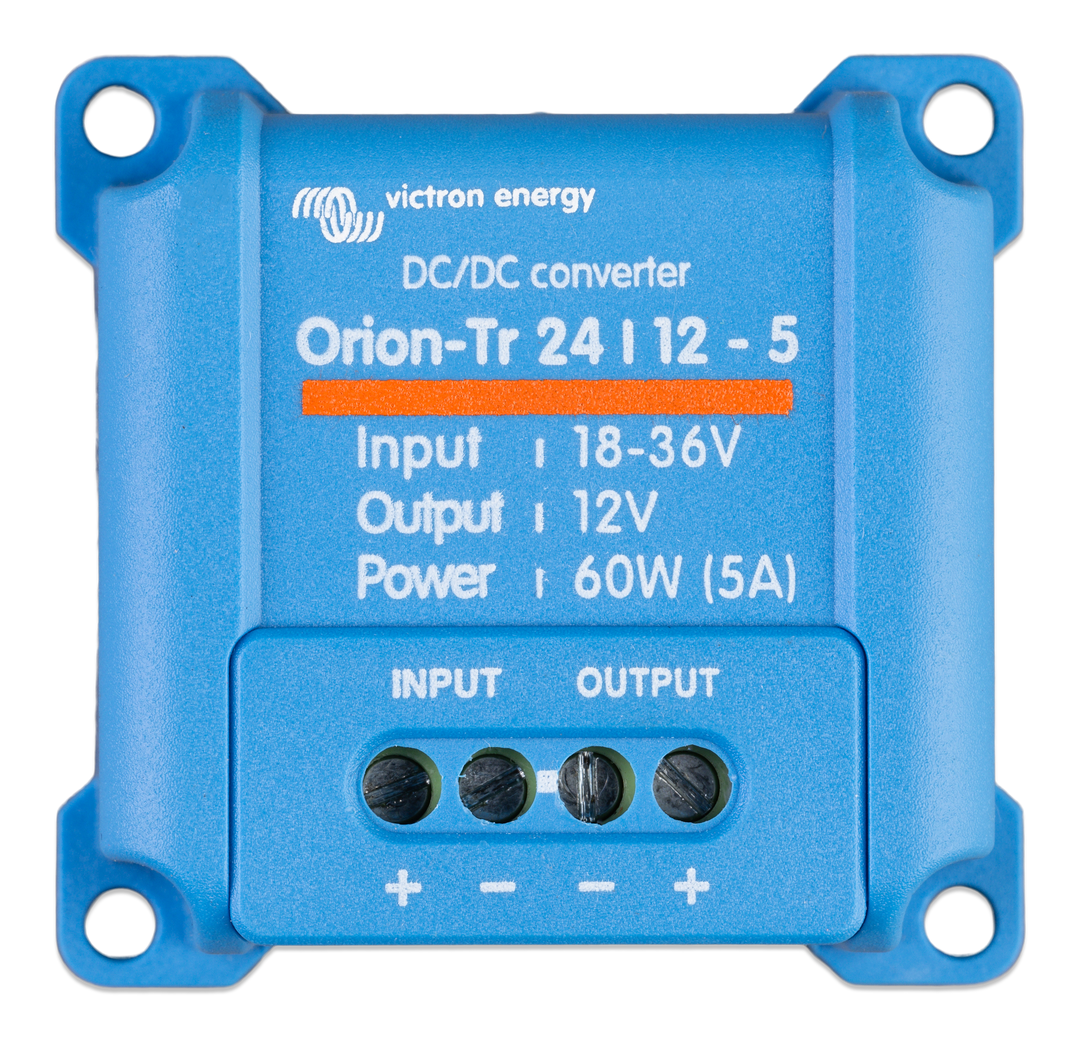

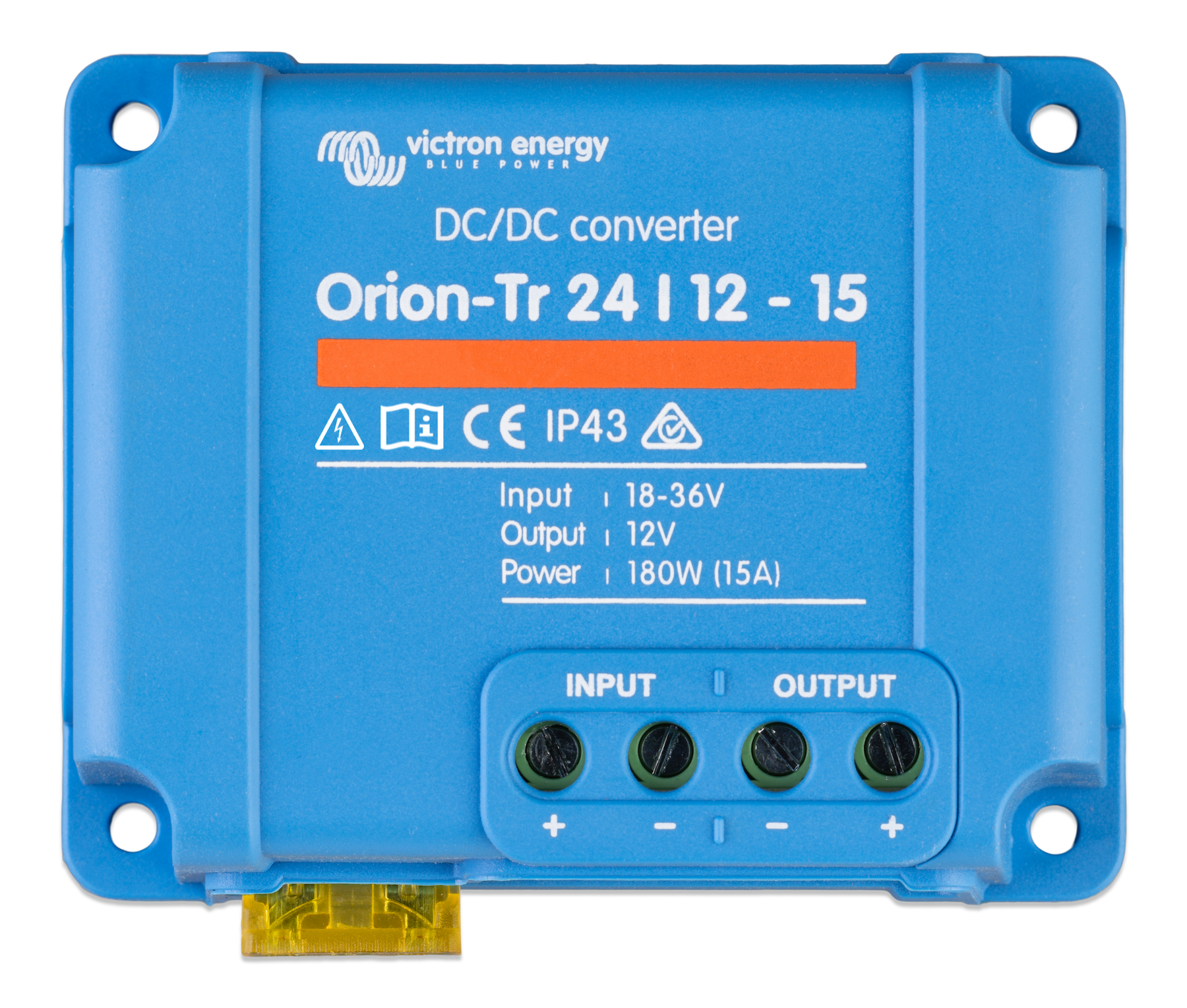

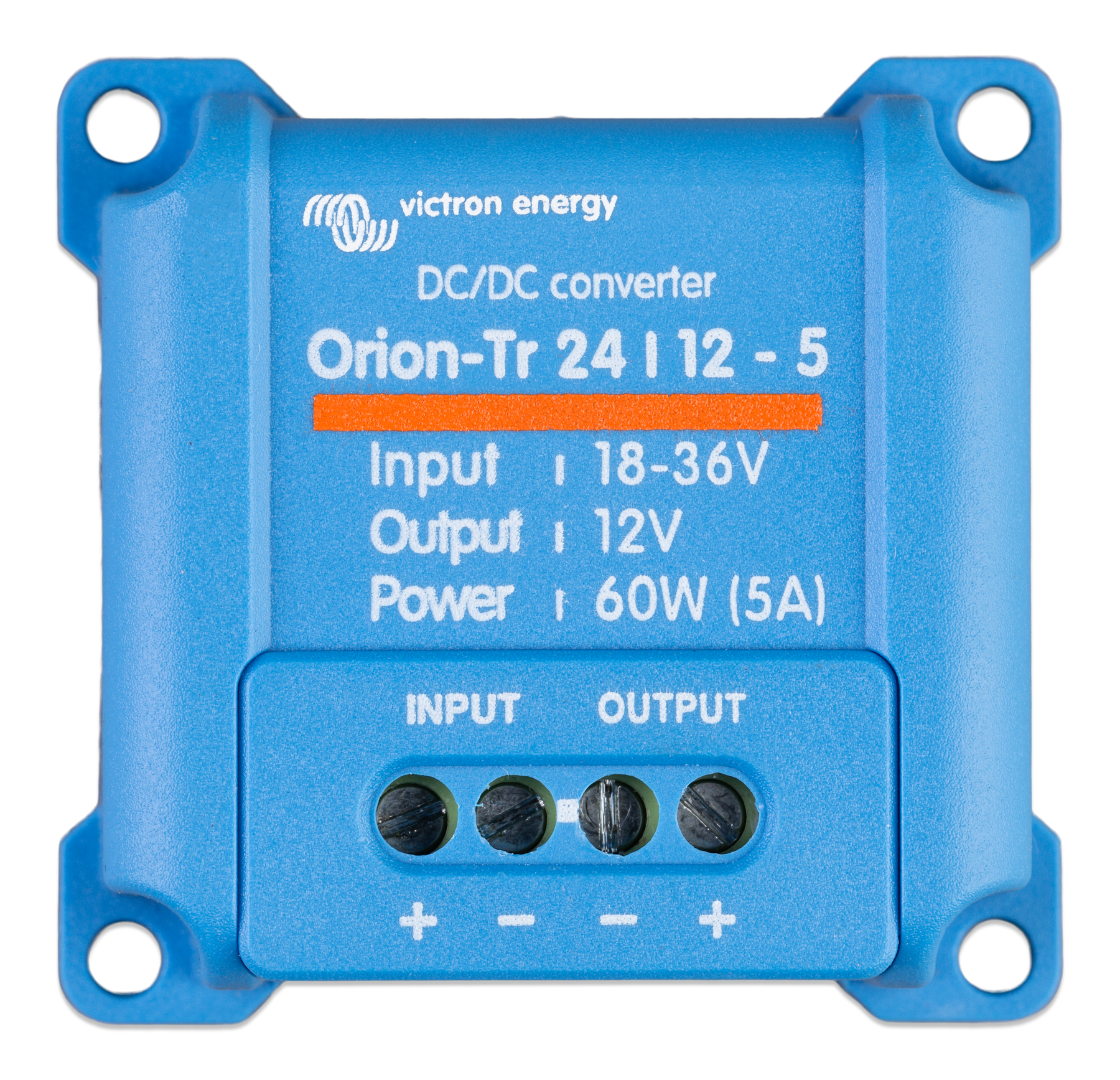

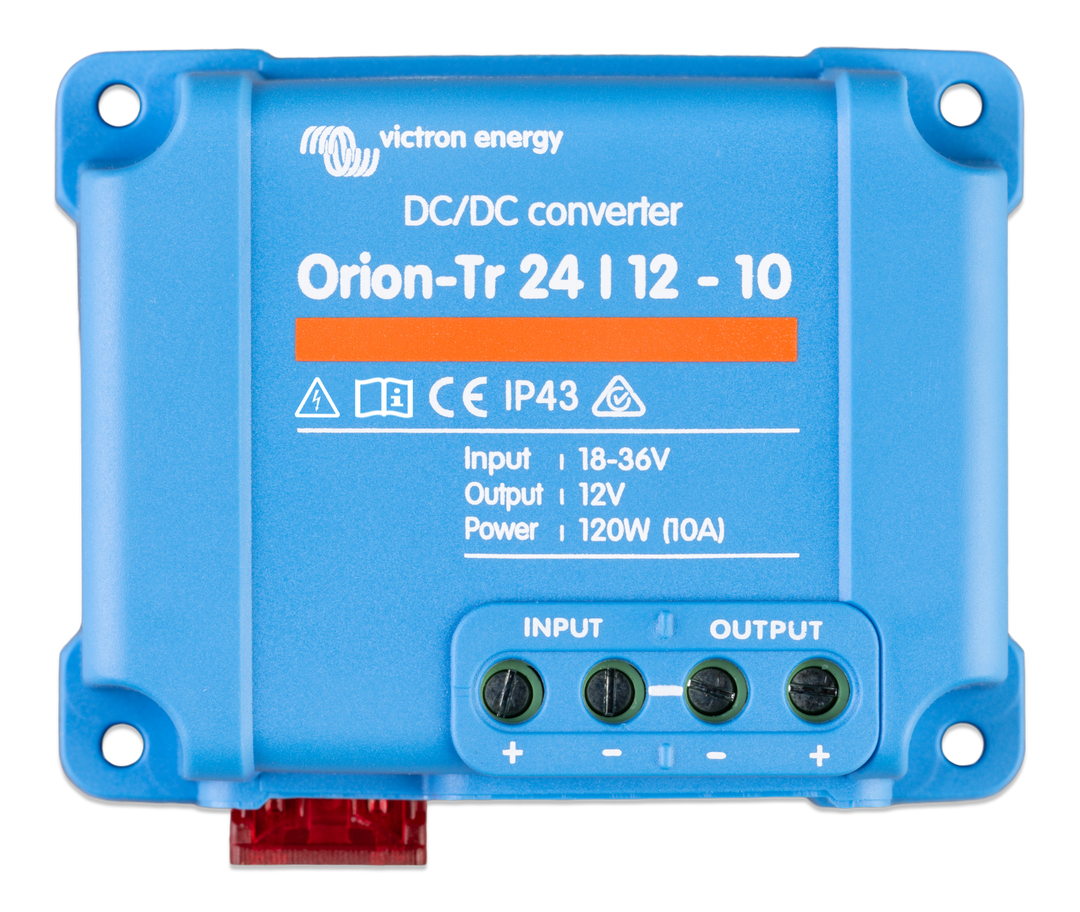

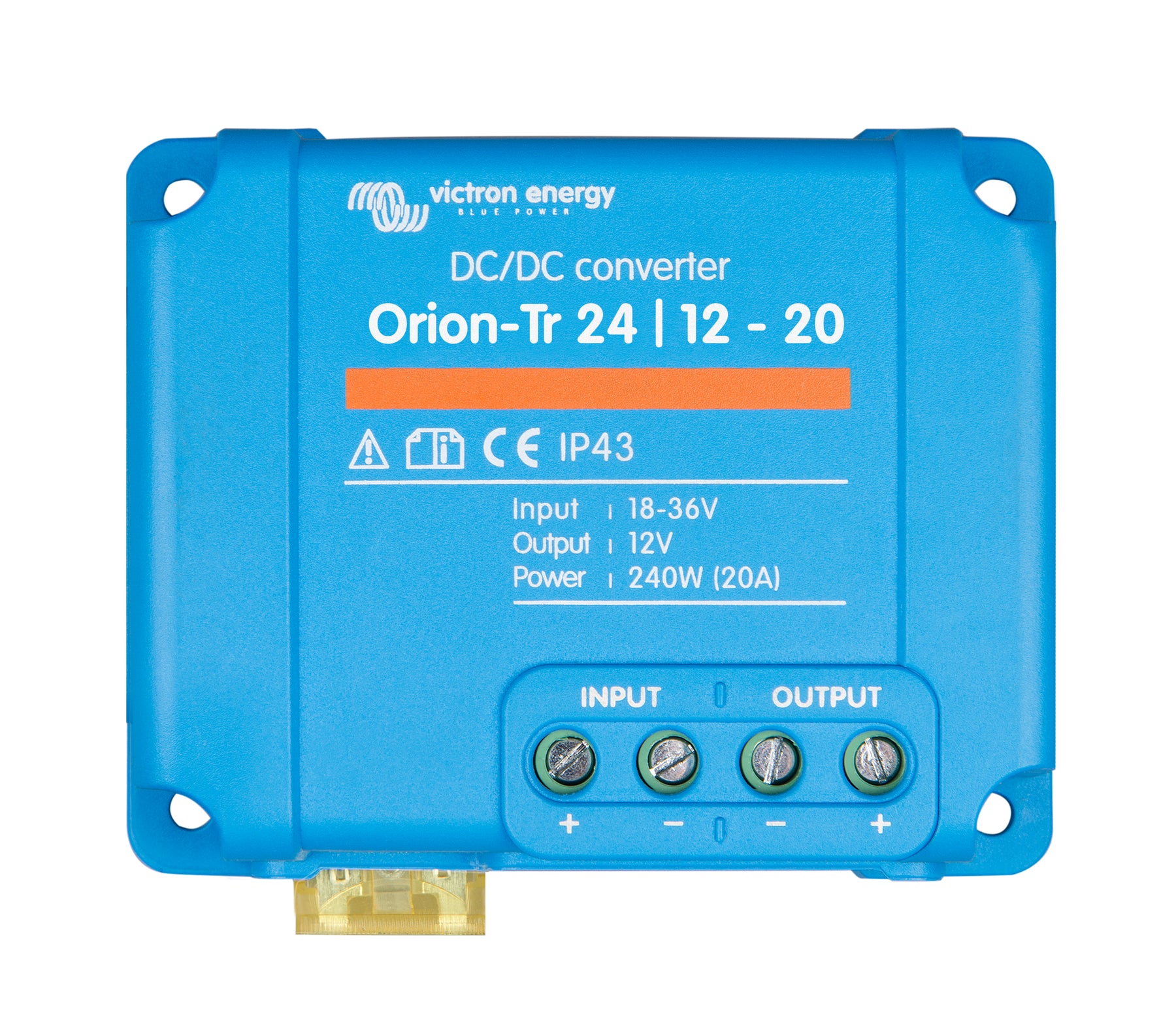

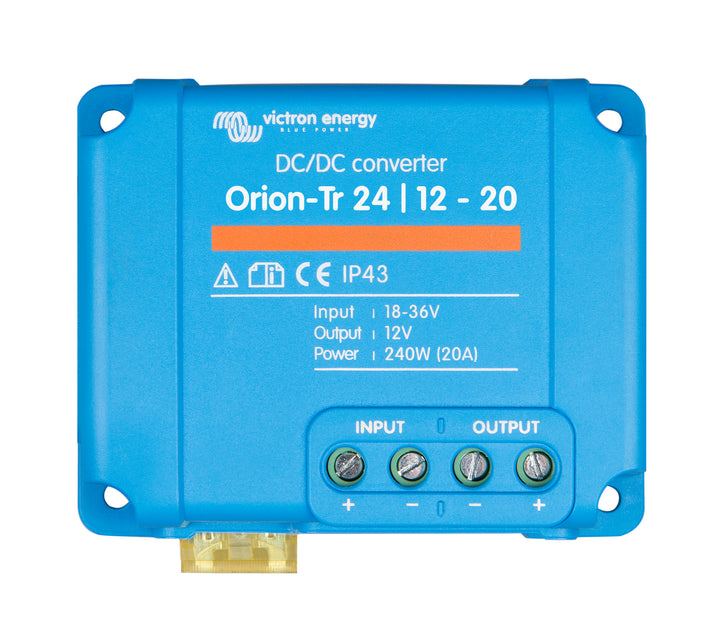

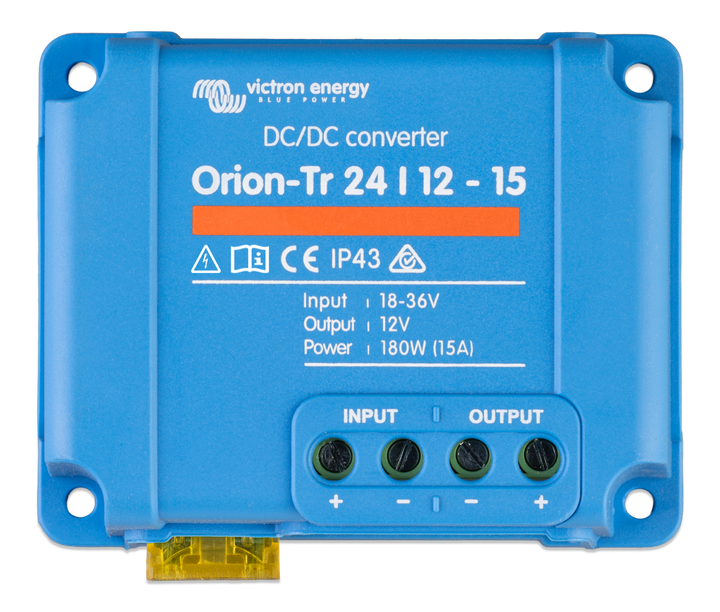

The Victron Orion-Tr Non-Isolated DC-DC Converter range converts a 24V DC supply to a stable 12V DC output for compatible caravan, motorhome, marine and off-grid electrical systems. Choose the output current and fixed-output specification required for your installation.
Non-isolated Orion-Tr converters use synchronous rectification for high efficiency, with full-load efficiency exceeding 95%. They are designed for installations that do not require galvanic isolation between the input and output circuits.
Key features
- 24V-to-12V DC voltage conversion
- Standard and fixed-output model choices
- High-efficiency synchronous rectification
- IP43 protection when installed with the screw terminals facing down
- Screw terminals allow installation without special tools
- 5A, 10A, 15A and 20A output-current options
Choose the right Orion-Tr converter
Select a variant by output current, power rating and output type. Fixed-output models are clearly labelled with their specified 12.5V or 12.7V output. Confirm cable size, fuse protection, ventilation, grounding and system compatibility before installation.
Important: Product selection and installation should be completed by a suitably qualified person and follow the current Victron manual. If your system requires electrical isolation between input and output, compare the Victron Orion-Tr Isolated DC-DC Converter. Browse the complete Victron DC-DC chargers and converters collection.
